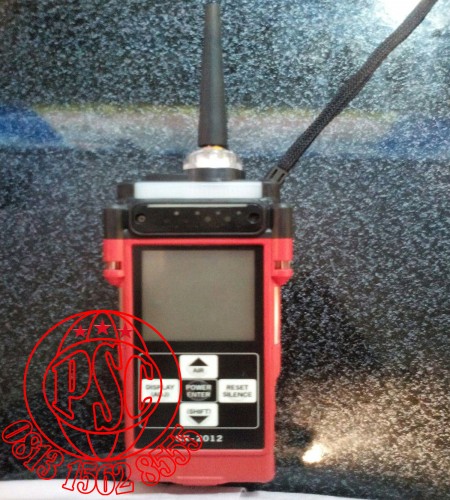

MultiGas Detector GX-2012 Riken Keiki
Perhatian!
Spesifikasi MultiGas Detector GX-2012 Riken Keiki
|
Multi Gas Monitor GX-2012 Riken Keiki |
|||||
|
Specifications |
|||||
|
Gas Detected |
Combustible Gases |
% Volume |
Oxygen ( O₂ ) |
Hydrogen Sulfide (H₂S) |
Carbon Monoxide (CO) |
|
( Methane as standard ) |
Methane |
|
|
|
|
|
Detection Principle |
Catalytic combustion |
Thermal conductivity |
Galvanic cell |
Electrochemical cell |
|
|
Detection Range |
0 ~ 100 % LEL |
0 ~ 100 % Vol. |
0 ~ 40 % Vol. |
0 ~ 100 ppm |
0 ~ 500 ppm |
|
0 ~ 500 / 1,000 / 2,000 / 5,000 ppm |
|
||||
|
Accuracy Statement |
± 5 % of reading or |
± 5 % of reading or ± 2 % of full scale |
± 0.5 % O₂ |
± 5 % of reading or ± 2 ppm H₂S |
± 5 % of reading or ± 5 ppm CO |
|
( whichever is greater ) |
± 2 % LEL ( LEL mode only ) |
|
|
||
|
Sampling Method |
Internal sample pump, flow rate nominal 0.5 LPM, includes hydrophobic filter |
||||
|
Display |
Digital LCD with 7 segments, auto backlight during alarm |
||||
|
Preset Alarms |
1st alarm 10% LEL |
No alarms for |
Low alarm 19.5% High alarm 23.5 % Over alarm 40.0 % |
1st 5 ppm |
1st 25 ppm |
|
( User Adjustable ) |
2nd alarm 50 % LEL |
% Vol. CH₄ |
2nd 30 ppm |
2nd 50 ppm |
|
|
Over alarm 100 % LEL |
TWA 10 ppm |
TWA 25 ppm |
|||
|
|
|
|
STEL 15 ppm |
STEL 200 ppm |
|
|
|
|
|
Over 100 ppm |
Over 500 ppm |
|
|
Alarms Types |
Gas alarms : 1st and 2nd, STEL, TWA ( user adjustable ) and OVER |
||||
|
Trouble alarms : Sensor connection, low battery, low flow, circuit trouble and calibration error |
|||||
|
Alarm Methods |
Gas alarms : Flashing lights, two tone buzzer, and vibration |
||||
|
Trouble alarms : Flashing lights, trouble displayed, intermittent buzzer, and vibration |
|||||
|
Operating Temp. & Humidity |
-20 °C to +50 °C ( -4 °F to 122 °F ) |
||||
|
0 to 95 % RH, non-condensing |
|||||
|
Response Time |
Within 30 seconds ( T90 ) |
||||
|
Continuous Operation |
Alkaline battery : 15 hours Li-Ion battery : 10 hours |
||||
|
70 °F ( 21 °C ) |
|||||
|
Power Source |
Li-Ion battery pack, or 3 “AA” Alkaline battery pack; interchangeable |
||||
|
Safety Rating |
ATEX, TIIS, IECEx, and CE or optionally : CSA classified as intrinsically safe. Class I, Division 1, Groups A, B, C, D, and CE |
||||
|
Note: Either ATEX ( USA and worldwide ) or CSA ( Canada ) version must be specified when ordering. |
|||||
|
Dimension & Weight |
Approx. 143 ( H ) x 71 ( W ) x 43 ( D ) mm ( 5.6” H x 2.8” W x 1.6” D ), approx. 350 g ( 12.3 ounces ) |
||||
|
Case Material |
High dust & water resistant design. RFI shielded high impact plastic with protective rubber overmolding |
||||
|
Controls |
Five buttons: POWER / ENTER, DISPLAY, AIR, RESET, SHIFT |
||||
|
Standard Accessories |
• Belt clip • Rubber nozzle, 3.5” • Datalogging software |
||||
|
• 10” Probe • Manual • Quick reference card |
|||||
|
• 10’ Hose • Training CD |
|||||
|
Optional Accessories |
• SDM-2012 calibration stations • Calibration kit |
||||
|
• Li-Ion battery pack • AC or DC Charger |
|||||
|
• Sample draw hoses ( 10’ standard, • Carrying case up to 50’ max. Available ) |
|||||
|
Configurations |
1, 2, 3, 4, or 5 sensor units |
||||
|
Li-Ion or alkaline battery pack options |
|||||
