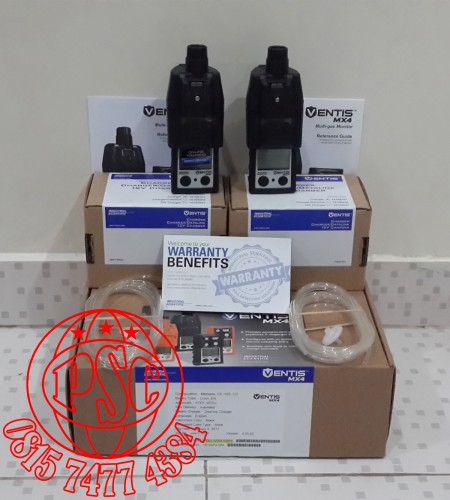

Ventis MX4 Multi Gas Detector Indsci
Perhatian!
Spesifikasi Ventis MX4 Multi Gas Detector Indsci
|
Multi Gas Detector Ventis MX4 Indsci |
|
|
Specifications |
|
|
Warranty |
Two- year warranty, including sensors and battery |
|
Case material |
Polycarbonate w/ protective rubber overmold |
|
Dimensions |
103 mm x 58 mm x 30 mm ( 4.1" x 2.3" x 1.2" ) - Ventis lithium-ion battery version |
|
172 mm x 67 mm x 66 mm ( 6.8" x 2.6" x 2.6" ) - Ventis with pump lithium-ion battery version |
|
|
Weight |
182 g ( 6.4 oz ) - Ventis, lithium-ion battery version |
|
380 g (13.4 oz) - Ventis with Pump, lithium-ion battery version |
|
|
Temperature Range |
-20°C- 50°C ( -4°F-122°F ) |
|
Humidity Range |
15%-95% Non-condensing ( continuous ) |
|
Display/Readout |
Backlit Liquid Crystal Display ( LCD ) |
|
Power Source/Run Time |
Rechargeable slim extended lithium-ion battery |
|
(18 hours typical @ 20 ºC) without pump |
|
|
Rechargeable lithium-ion battery |
|
|
(12 hours typical @ 20 ºC) without pump |
|
|
Rechargeable extended-range lithium-ion battery |
|
|
(20 hours typical @ 20 ºC) without pump |
|
|
(12 hours typical @ 20 ºC) with pump |
|
|
Replaceable AAA alkaline battery |
|
|
(8 hours typical @ 20 ºC) without pump |
|
|
(4 hours typical @ 20 ºC) with pump |
|
|
Alarms |
Ultra-bright LEDs, loud audible alarm ( 95 dB at 30 cm ), and vibrating alarm |
|
Sensors |
Combustible gases/methane - Catalytic Diffusion |
|
O2, CO/H2 low, CO, H2S, NO2, SO2 - Electrochemical |
|
|
Measuring Ranges |
|
|
Combustible Gases |
0-100% LEL in 1% increments |
|
Methane (CH4) |
0-5% of vol. in 0.01% increments |
|
Oxygen (O2) |
0-30% of vol. in 0.1% increments |
|
Carbon monoxide (CO/H2 low) |
0-1,000 ppm in 1 ppm increments |
|
Carbon monoxide (CO) |
0-1,000 ppm in 1 ppm increments |
|
Hydrogen sulfide (H2S) |
0-500 ppm in 0.1 ppm increments |
|
Nitrogen dioxide (NO2) |
0-150 ppm in 0.1 ppm increments |
|
Sulfur dioxide (SO2) |
0-150 ppm in 0.1 ppm increments |
|
Supplied with Monitor |
Calibration Cup (without pump), Sample Tubing (with pump) |
|
Languages |
English (1), French (2), Spanish (3), German (4), Italian (5), Dutch (6), Portuguese (7), Russian (9), Polish (A), Czech (B), Chinese (C), Danish (D), Norwegian (E), Finnish (F), Swedish (G), Japanese (J) |
|
|
|
|
Order Information |
|
|
MOST COMMON INSTRUMENT ConFIGURATIONS (UL/CSA) |
|
|
PART NO. |
PART NO. DEscriptION |
|
VTS-K1234100y0z |
Ventis MX4, LEL, CO, H2S, O2, Slim Extended Li-ion, Desktop Charger, Black |
|
VTS-K1232111y0z |
Ventis MX4 with pump, LEL, CO, H2S, O2, Extented Li-ion, Desktop Charger, Safety Orange |
|
VTS-K1034100y1z |
Ventis MX4, LEL, CO, O2, Slim Extended Li-ion, Desktop Charger, Soft Case, Black |
|
VTS-K1032110y1z |
Ventis MX4 with pump, LEL, CO, O2, Extended Li-ion, Desktop Charger, Soft Case, Black |
|
VTS-K5234101y0z |
Ventis MX4, LEL, SO2, H2S, O2, Slim Extended Li-ion, Desktop Charger, Safety Orange |
|
VTS-K1434100y1z |
Ventis MX4, LEL, CO, NO2, O2, Slim Extended Li-ion, Desktop Charger, Soft Case, Black |
|
VTS-K1432111y0z |
Ventis MX4 with pump, LEL, CO, NO2, O2, Extended Li-ion, Desktop Charger, Safety Orange |
|
y = Agency Certification: 1 = UL/CSA, 2 = ATEX/IECEx, 3 = MSHA, 4 = ANZEx, |
|
|
5 = China Ex, 7 = EAC(GOST-R/GOST-K), 8 = KC(HOSHA), 9 = INMETRO, A = MED, D = TIIS |
|
|
z = Language: 1 = EN, 2 = FR, 3 = ES, 4 = DE, 5 = ITA, 6 = DUT, 7 = PT, 9 = RUS, A = POL, B = CZE, |
|
|
C = CN, D = DAN, E = NOR, F = FIN, G = SWE, J = JPN |
|
PALLSCIENTIFIC
adalah perusahaan swasta nasional yang bergerak di bidang Hygiene Industri dan Kesehatan Lingkungan. Bertujuan untuk menjembatani dan memenuhi kebutuhan dunia industri khususnya dan masyarakat pada umumnya. perusahaan yang bergerak di bidang perdagangan barang dan jasa dengan meng-khususkan lingkup usaha perusahaan dalam bidang pengadaan peralatan hygiene industri dan kesehatan lingkungan, Peralatan Laboratorium, alat ? alat kesehatan, serta penyediaan jasa pemantauan, pengukuran lingkungan dan perbaikan peralatan.
PERDAGANGAN BARANG
Produk yang diperdagangkan perusahan utamanya adalah produk produk yang berkaitan dengan hygiene industri, kesehatan lingkungan, kesehatan & keselamatan kerja dan Peralatan laboratorium dan alat alat kesehatan .
Produk produk tersebut antara lain :
- Peralatan Pemantau Hygiene Industri dan Keselamatan Kerja Peralatan pemantau higiene industri dan keselamatan kerja meliputi :
- Alat ukur suara ( Sound Level Meter & Noise Dosimeter)
- Alat ukur getaran ( Vibration Monitoring)
- Alat detector gas berbahaya & mudah terbakar ( Gas Detektor & Flamable Gas Detector)
- Alat untuk pengambilan sampel gas, debu, mist, fume & aerosol ( gas, fume, aerosol sample pump & monitoring)
- Peralatan Pemantau Lingkungan Jenis peralatan tersebut antara lain :
- Peralatan sampling dan analisa udara maupun peralatan untuk sampling kualitas udara pada cerobong secara isokinetik otomatis
- Alat pantau cuaca stasioner yang dilengkapi dengan penyimpanan data ( data logging) sesuai parameter yang diukur.
- Peralatan pemantau kwalitas Air Bersih dan Air Minum ( Microbiologi, PH, Conductivity, ORP, Salinity, Dissolved, Turbiditi, TDS, Resisvity, Ion Meter dll..)
- Perlatan pemantau kadar kimia dalam makanan
- Scientific Instrument, Untuk :
- Laboratorium Kimia Dasar & Kimia Klinik : Laboratorium Bio Kimia, Kimia Klinik , Kimia Analitik, Mikrobiologi, Hematologi, Parasitologi, Kimia Farmasi & Toksikologi, Serologi, Virologi & Immunologi, Kimia Air, Kimia Makanan & Minuman, dll
- Laboratorium Fisika & Biologi : Laboratorium Instrumentasi, Fisika dasar, Elektronika Medik, Radiology, alat elektronik, Elektronika Medik, Anatomi & Fisiology, Farmakologi dll.
- Media dan Reagensia, Untuk :
- Menunjang kebutuhan reagent pada Rumah Sakit, Puskesmas, Klinik, dan Laboratorium.
- Survey Meter
