Ventis Pro Multi Gas Detector Indsci

Multi Gas Detector Ventis Pro Indsci

Specifications

Warranty

Guaranteed for Life. Warranted for as long as the instrument is supported by Industrial Scientific Corporation ( excludes sensors, batteries, and filters ). O2, LEL, CO, and H2S sensors warranted for three years. All other sensors warranted for two years. Pumps and batteries are warranted for two years.

Keypad

Two buttons for operation. Dedicated panic button.

Data Log

At least 3 months at 10-second intervals

Event Logging

60 alarm events

IP

IP68 ( submersion at 1.5 meters for 1 hour )

Case Materials

Polycarbonate with protective rubber overmold

Dimenssions

104 x 58 x 36 mm ( 4.1 x 2.3 x 1.4 in ) without pump

172 x 67 x 65 mm ( 6.8 x 2.6 x 2.6 in ) with pump

Weight

200 g ( 7.05 oz ), typical without pump

390 g ( 13.76 oz  ), typical with pump

Temperature Range

-40° C to 50 °C ( -40° F to 122° F )**

Humidity Range

15% - 95% Non-condensing

Wireless

Optional LENS™ Wireless, proprietary mesh network

Frequency : ISM license-free band ( 2.405 - 2.480 GHz )

Max Peers : 25 devices per network group

Range : 100 m ( 300 ft ) line of sight, face-to-face

Encryption : AES-128

Approvals : FCC Part 15, IC, CE/RED, others†

Display/ReadOut

Backlit liquid crystal display ( LCD )

Power Source/Run Time

Rechargeable slim extended lithium-ion battery

( 18 hours typical @ 20 ºC ) without pump

Rechargeable lithium-ion battery pack with LEL

( 12 hours typical @ 20 ºC ) without pump

Rechargeable extended-range lithium-ion battery pack with LEL

( 23 hours typical @ 20 ºC ) without pump

( 18 hours typical @ 20 ºC ) with pump

Rechargeable lithium-ion battery pack with IR

( 36 hours typical @ 20 ºC ) without pump

Rechargeable extended-range lithium-ion battery pack with IR

( 72 hours typical @ 20 ºC ) without pump

( 32 hours typical @ 20 ºC ) with pump

Alarms

Four visual alarm LEDs ( two red, two blue );

95 decibel ( dB ) audible alarm at a distance of 10 cm ( 3.94 in );

Vibration alarm

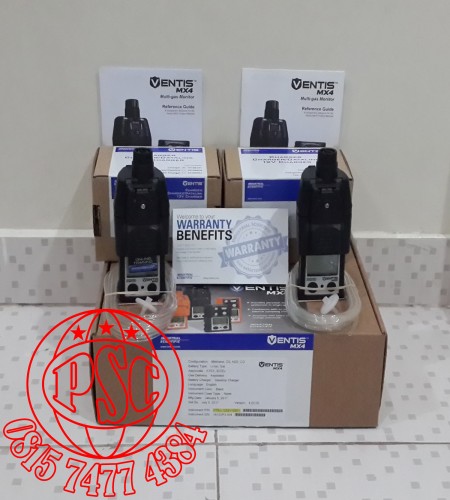

Supplied With Monitor

Calibration Cup ( Ventis ), Sample Tubing ( Ventis with pump ), Reference Guide

Language

English (1), French (2), Spanish (3), German (4), Italian (5), Dutch (6), Portuguese (7), Polish (A)

Sensors

Combustible Gases/Methane - Catalytic Bead

O2, CO, CO/H2 low, H2S, HCN, NH3, NO2, PH3, SO2- Electrochemical

CH4, CO2/LEL, CO2/CH4 – Infrared

Measuring Range

Catalytic Bead

Combustible Gases

0 - 100 % LEL in 1 % increments

Methane ( CH4 )

0 - 5 % of vol. in 0.01 % increments

Electrochemical

Ammonia ( NH3 )

0-500 ppm in 1 ppm increments

Carbon Monoxide ( CO )

0-2,000 ppm in 1 ppm increments

Carbon Monoxide ( CO/H2 low )

0-1,000 ppm in 1 ppm increments

Carbon Monoxide/Hydrogen Sulfide : CO

0-1,500 ppm in 1 ppm increments

Hydrogen Sulfide ( H2S )

0-500 ppm in 0.1 ppm increments

Hydrogen Cyanide

0-30 ppm in 0.1 ppm increments

Nitrogen Dioxide ( NO2 )

0-150 ppm in 0.1 ppm increments

Oxygen ( O2 ) ( Standard/Long-Life )

0-30% of vol. in 0.1% increments

Phosphine ( PH3 )

0-10 ppm in 0.01 ppm increments

Sulfur Dioxide ( SO2 )

0-150 ppm in 0.1 ppm increments

Infrared

Methane ( CH4 )

0-5 % vol in 0.01 % increments

5-100 % vol in 0.1 % increments

Carbon Dioxide/Combustible

CO2 : 0-5 % vol in 0.01 % increments

LEL : 0-100 % LEL in 1 % increments

Carbon Dioxide/Methane

CO2 : 0-5 % vol in 0.01 % increments

CH4 : 0-5 % vol in 0.01 % increments

CH4 : 5-100 % vol in 0.1 % increments
