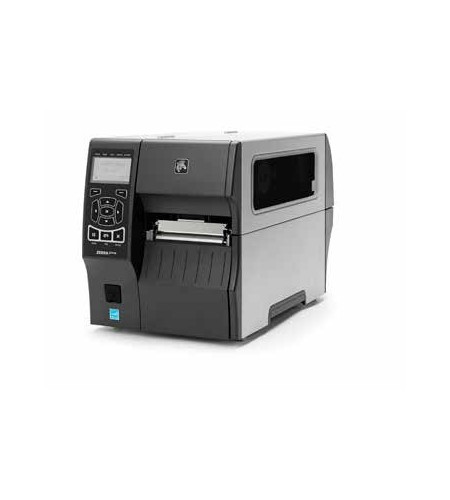

Barcode Printer Zebra ZT410, 203dpi-4"-6ips-USB

Printer Specifications
Resolution
• 203 dpi/8 dots per mm
•  300 dpi/12 dots per mm (optional)
•  600 dpi/24 dots per mm (optional for ZT410 only)
Memory
• 256 MB SDRAM memory
• 512 MB on-board linear Flash memory
Maximum Print Width
4.09"/104 mm (ZT410)
6.6"/168 mm (ZT420)
Maximum Print Speed
14 ips/356 mm per second (ZT410)
12 ips/305 mm per second (ZT420)
Media Sensors
Dual media sensors: transmissive and reflective
Media Characteristics
Media web width (label and liner):
• ZT410
 – 1.00"/25.4 mm to 4.5"/114 mm tear/cutter
 – 1.00"/25.4 mm to 4.25"/108 mm peel/rewind
• ZT420
 – 2.00"/51 mm to 7.0"/178 mm tear/cutter
 – 2.00”/51 mm to 6.75”/171 mm peel/rewind
Maximum non-continuous label length:
39"/991 mm
Print Length
• ZT410
 –  203 dpi: 157”/3988 mm
 – 300 dpi: 73”/1854 mm
 – 600 dpi: 39”/991 mm
• ZT420
 – 203 dpi: 102”/2591 mm
 – 300 dpi: 45”/1143 mm
Maximum Media Roll Size
8.0"/203 mm O.D. on a 3"/76 mm I.D. core
Media Thickness
0.0023"/0.058 mm to 0.010"/0.25 mm
Media Types
Continuous, die-cut, notch, black-mark
Ribbon Characteristics
(Thermal-transfer option only)
Outside Diameter
450 m: 3.2”/81.3 mm O.D. on a 1.0"/25.4 mm I.D. core
Standard Length
1476’/450 m
Width
• ZT410 - 2.00"/51 mm to 4.33"/110 mm
• ZT420 - 2.00"/51 mm to 6.85"/174 mm
Ribbon Setup
Ribbon wound ink-side out; ribbon wound ink-side in can be used with the optional ribbon spindle
