GW Instek AC Power Supplies currently can be divided into three categories.

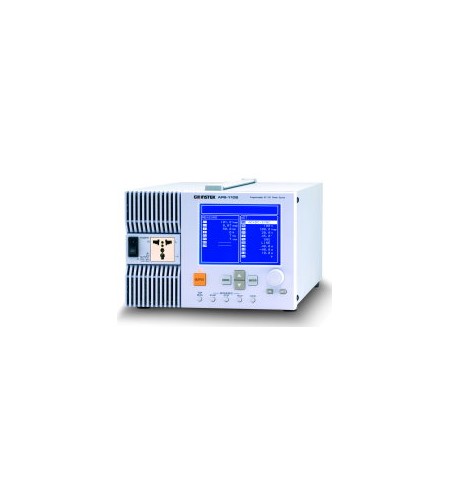

AC power supply APS-1102A not only plays the role as a precision AC/DC power source but also a powerful analyzer. It contains abundant features for the testing and characteristic analysis of power supplies, electronic devices, components and modules.

The APS-7000 series is programmable linear AC power source, with the height of 2U and output frequency range is 45~500Hz. The maximum rated output for APS-7050 is 500VA, 310Vrms, 4.2Arms and APS-7100 is 1000VA, 310Vrms, 8.4Arms. The APS-7000 series comprises nine measurement and test functions and provides user interface similar to that of AC Power Meter.

The APS-9000 Series are dual output, 300 to 1000VA, linear AC power source. To protect the APS-Series and loads from unexpected conditions, over current, over temperature, and short-circuit protection are standard

AC + DC Power Sources

Compare List

APS-1102A

Check to Compare
- Name: AC/DC Power Source, APS-1102A
- AC Voltage Range: (AC 100V) 0.0V～155.0V & (AC 200V) 0.0V～310.0V
- DC Voltage Range: (AC 100V) 10A & (AC 200V) 5A
- AC Current Range: (AC 100V) -220.0V～+220.0V & (AC 200V) -440.0V～+440.0V
- DC Current Range: (AC 100V) 10A & (AC 200V) 5A
- Max. Power Range: INPUT (100～180V) 750W & INPUT (180 ~ 250V) 1000W
- Interface: USB (USBTMC)
- Model Name: APS-1102A
AC Power Sources

Compare List
- APS-7000 Series

  Check to Compare
  - Name: Programming AC Power Source, APS-7000
  - AC Voltage Range: 0~155Vrms, 0~310Vrms
  - AC Current Range: 4.2A/2.1A(APS-7050), 8.4A/4.2A (APS-7100)
  - Max. Power Range: 500VA, 1kVA
  - Interface: USB Host, LAN, GPIB(Opt), RS232/USB CDC(Opt)
  - Model Name: APS-7050, APS-7100
- APS-7000E Series

  Check to Compare
  - Name: AC Power Source, APS-7000E
  - AC Voltage Range: 0~155Vrms, 0~310Vrms
  - AC Current Range: 4.2A/2.1A(APS-7050E), 8.4A/4.2A (APS-7100E)
  - Max. Power Range: 500VA, 1kVA
  - Model Name: APS-7100E, APS-7050E
- APS-9000 Series

  Check to Compare
  - Name: AC Power Source, APS-9000
  - AC Voltage Range: 0.0 ~ 300.0VAC
  - AC Current Range: (0~150V) 2.6 / 4.2 / 8.4Arms & (0~300V)1.3 / 2.1 / 4.2Arms
  - Max. Power Range: 300 / 500 / 1000VA
  - Model Name: APS-9102, APS-9501, APS-9301
