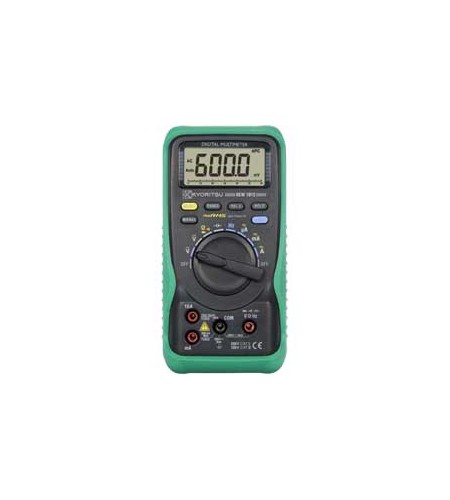

KYORITSU KEWMATE 1012 Digital multimeters

Update Terakhir
01-03-2017
Dilihat Sebanyak
59 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU KEWMATE 1012 Digital multimeters



Digital Multimeters

KEW 1012

KEW 1012
CE

• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation
  • TRUE RMS
  • DCACV
  • DCACA
  • Resistance
  • Continuitybuzzer
  • Diode
  • Capacitance
  • Frequency
  • DUTY
  • DATAHOLD
  • MAX/MIN
  • Relative
  • AutoPowerOff

DC V 600.0mV/6.000/60.00/600.0/600V
(Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V)
AC V 6.000/60.00/600.0/600V
(Input Impedance: 10MΩ) ±1.5%±5dgt
(6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V)
DC A 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A)
AC A 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A)
Ω 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt
(600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ)
Continuity buzzer 0 - 600Ω (Buzzer sounds below 100Ω)
Diode test 2.8V Release Voltage:Approx. 0.4mA Test Current
Capacitance 40/400nF/4/40/400/4000µF
Frequency 10/100/1000Hz/10/100/1000kHz/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz)
Applicable standards IEC 61010-1 CAT III 300V Pollution degree 2
IEC 61010-1 CAT II 600V Pollution degree 2
IEC 61010-031
IEC 61326
Display 6040 Counts
Power source R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)
Dimensions 161(L) × 82(W) × 50(D)mm
Weight Approx. 280g
Included Accessories 7066A (Test leads)
0.8A/600V (Ceramic Fuse) × 1built-in
10A/600V (Ceramic Fuse) × 1built-in
R6 × 2
Instruction Manual
Optional Accessories 7234 (Crocodile clip test lead)
9095 (Carrying case)
