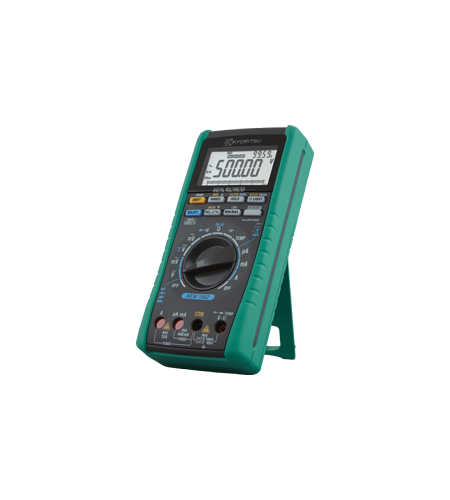

KYORITSU KEWMATE 1062 Digital Multimeters

Update Terakhir

02-03-2017

Dilihat Sebanyak

35 kali

Lokasi

Jawa Barat - Bekasi - Bekasi Utara

Harga

Kontak Kami

+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU KEWMATE 1062 Digital Multimeters

Digital Multimeters

KEW 1062

High Accuracy, High Performance and Reliable Measurements
• 0.02% basic DC accuracy
• Large display with 50,000 counts
• Dual display for double indication for AC and DC, V and Hz, etc.
• True-RMS Measurements AC and AC+DC
• Wide AC Frequency bandwidth from 10Hz to 100kHz
• True-RMS or MEAN value detection mode can be selected
• Fast Peak Hold response time of 250µs
• Low-pass filter for motor drive measurements
• Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current
• User calibration function

Safety design for industrial use
• Complies with IEC 61010-1 CAT III 1000V, CAT IV 600V
• Terminal shutter to prevent incorrect test leads' insertion in current terminals
• Very wide operating temperature range from -20 to 55ºC

Reliable support for data management
• Large data internal memory
KEW 1062: 10,000 data (logging), 100 data (manual)
• Download data and Live Monitoring on a PC via the USB interface
(Option for USB Communication set)
* MAX 32,767 data can be transferred.

Detection mode	MEAN/RMS (switch)
DC V	50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V (Input impedance: Approx. 100MΩ [50/500/2400mV], 10MΩ [5/50/500/1000V]) ±0.02%rdg±2dgt (Basic accuracy)
AC V [RMS]	50.000/500.00mV/5.0000/50.000/500.00/1000.0V( Only for 1062) (Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V]) ±0.4%rdg±30dgt (Basic accuracy)
AC V [MEAN]	50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V (Input impedance:11MΩ<50pF [50/500mV/5V],10MΩ<50pF [50/500/1000V]) ±1%rdg±30dgt (Basic accuracy)
DCV+ACV	5.0000/50.000/500.00/1000.0V (Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V]) ±0.5%rdg±10dgt (Basic accuracy)
DC A	500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.2%rdg±5dgt (Basic accuracy)
AC A [RMS]	500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±0.75%rdg±20dgt (Basic accuracy)
AC A [MEAN]	500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A ±1.5%rdg±20dgt (Basic accuracy)
DCA+ACA	500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A ±1%rdg±10dgt (Basic accuracy)
Ω	500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ ±0.05%rdg±2dgt (Basic accuracy)
LowPower-Ω	5.000/50.00/500.0kΩ/5.000MΩ ±0.2%rdg±3dgt (Basic accuracy)
Continuity buzzer	500.0Ω (The buzzer turns on for resistances lower than 100±50Ω)
Diode test	2.4000V ±1%rdg±2dgt Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance	5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF ±1%rdg±5dgt (Basic accuracy)
Frequency	2.000 - 9.999/9.00 - 99.99/90.0 - 999.9Hz/0.900 - 9.999/9.00 - 99.99kHz ±0.02%rdg±1dgt (Basic accuracy)
DUTY	10 - 90% ±1%rdg
Temperature	-200 - 1372ºC ±1%rdg±1.5ºC -328 - 2501.6ºF ±1%rdg±2.0ºF (with the use of K-type Temperature probe)
Measurement functions	DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω *
Other functions	Data Hold (D/H), Auto Hold (A/H), Peak Hold * (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
Applicable standards	IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC)
Power source	R6 (1.5V)×4 (Auto power off: approx. 20 minutes)
Dimensions	192(L)×90(W)×49(D) mm
Weight	Approx. 560g (including batteries)
Included Accessories	7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included)

Option

Description		Model	Specification
Crocodile clip test lead		7234	CAT IV 600V, CAT III 1000V
AC/DC Clamp Sensor		8115	AC 130A / DC 180A
Clamp sensor		8121	AC 100A
		8122	AC 500A
		8123	AC 1000A
		8146	AC 30A
		8147	AC 70A
		8148	AC 100A
Banana Ø4mm Adjuster Plug		7146	length:190mm
USB Communication set		8241	USB adaptor + USB cable + DMM Software
DMM Printer full set		8249	8243＋8246＋8248
	Printer Communication set	8243	Printer Adapter + RS232 cable
	Printer	8246	Printer + Thermal paper (1 roll)
	AC adapter for printer [EU]	8248A	AC230V±10%
Thermal paper for printer		8247	10 rolls
Carrying case		9154	for the main unit with testi leads and communication cable

Thermocouple Type K Specification

Description	Model	Specification
Temperature probes	8405	Max. 500ºC (Surface type, Point material: Ceramic)
	8406	Max. 500ºC (Surface type)
	8407	Max. 700ºC (Liquid, Semi-solid)
	8408	Max. 600ºC (Air, Gas)
