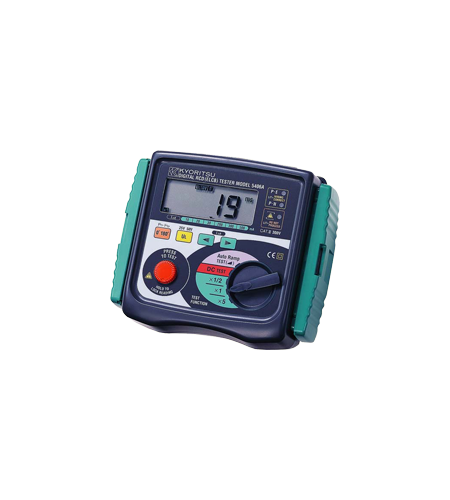

KYORITSU MODEL 5406A RCD TESTERS

Update Terakhir
03-03-2017
Dilihat Sebanyak
40 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi KYORITSU MODEL 5406A RCD TESTERS

RCD Testers

MODEL 5406A

MODEL 5406A
CE

• Custom microprocessor controlled for highest accuracy and reliability.
• 3 LEDs for checking correct wiring status.
• 0 and 180 degree phase angle switch permits quick tests and consistent readings.
• Digital read-out of tripping time.
• Constant current source circuitry ensures that a fluctuating mains voltage does not affect the accuracy of readings.
• Large custom digital display readout.
• Visual indication of reversed phase and neutral wiring at socket.
• Designed to IP54 Rating.
• Complies with IEC 61557
• Test of a large kind of RCD's: Standard, Selective, AC and A (DC sensitive breakers)

Rated Tripping Current 10/20/30/200/300/500mA
Fault Condition Settings × 1/2, × 1, × 5, × DC,
AUTO RAMP
Trip Current Duration 1000ms, 200ms (×5)
Lowest Resolution 1ms
Trip Time Accuracy ±0.6%rdg±4dgt
Operating Voltage 230V+10%-15%
(195V - 253V) 50Hz
Safety Standard IEC 61557-1,-6
IEC 61010-1 CAT III 300V
IEC 61010-2-031 Pollution Degree 2
Withstand Voltage 3700V AC for 1 minute
IP Rating IEC 60529-IP54
Dimensions 167(L) × 186(W) × 89(D)mm
Weight 800g approx.
Accessories Molded plug test leads
Pouch for test leads
9121 (Shoulder Strap)
Instruction Manual
Optional 7121B (Simplified measurement probe)
