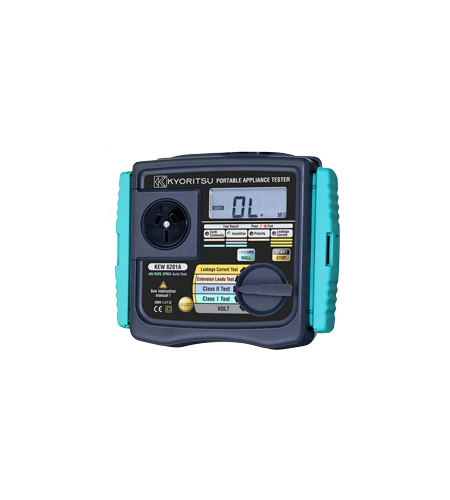

Spesifikasi KYORITSU KEW 6201A Portable Appliance Testers



Portable Appliance Test ers

KEW 6201A

KEW 6201A
CE

The KEW 6201A is a portable appliance tester, performing four functions to ensure the Safety of ClassI and ClassII appliances. And also can measure the mains voltage.
Readings are displayed on a large liquid crystal display (LCD) below which are four LEDs which unambiguously display a pass or fail indication for threshold values dictated by AS/NZS 3760.

This instrument is suitable for performing tests as required by the following standards.
AS/NZS 3760 In-service safety inspection and testing of electrical equipment.

Test Function
Function Tests of contents
Test ⅠClass Protective conductor resistance
Insulation (250V or 500V)
Test ⅠSELECT Switch + Class Protective conductor resistance
Leakage Current test
TestⅡClass Insulation (250V or 500V)
TestⅡSELECT Switch + Class Leakage Current test
Extension Leads test Protective conductor resistance
Insulation P/N-PE
Polarity
SELECT Switch + Extension Leads test Protective conductor resistance
Leakage Current test
Leakage Current Test Leakage current measurement

RPE 20Ω Protective Conductor Resistance Test

Measuring range  0 - 15.00Ω
Resolution of measurement 10mΩ
Open circuit voltage < AC 12V
Measuring current 10A AC nominal value
Accuracy ±3%rdg±5dgt

RINS 200MΩ Insulation Resistance

Rating 250V/20MΩ 500V/20MΩ
Measuring range 0 - 19.99Ω
Resolution of measurement 10kΩ
Output voltage 250V DC (+20%/-10%) @1MΩ 500V DC (+20%/-10%) @1MΩ
Short circuit current 2.5mA DC or less
Accuracy ±2%rdg±3dgt

Leakage Current Test

Measuring range AC 0.1 - 19.99mA
Resolution of measurement 0.01mA
Examination time Max 15 seconds
Accuracy ±3%rdg±5dgt

AC VOLT Mains Voltage Check

Measuring range 207 - 264V
Resolution of measurement 1V
Accuracy ±2%rdg±3dgt

General

Supply voltage 240V±10%
Frequency 50Hz±1%
Applicable standards IEC 61010-1 CAT III 300V Pollution Degree2
IEC 61326-1 (EMC)
Dimensions 167(L) × 185 (W) × 89 (D) mm
Weight 1.2kg (only the instrument body)
Included Accessories 7123 (Power cord [AU])
7129A (Test leads with alligator clip)
7161A (Flat test prod [black])
7140 (Adapter for exntesion cord)
9147 (Cord case)
9121 (Shoulder strap)
Instruction manual
Optional Accessories 7121B (Distribution board test leads)
