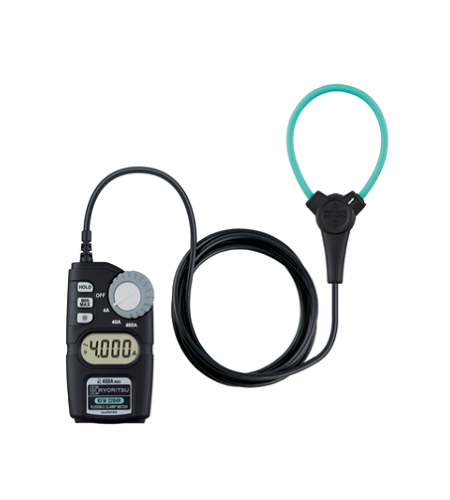

Spesifikasi KYORITSU KEW 2204R NEW AC DIGITAL CLAMP METERS

AC Digital Clamp Meters

KEW 2204R

• Flexible and light weight clamp sensor
• MIN MAX function
• Backlight LCD display
• IEC 61010-1 (CAT IV 600V /CAT III 1000V)
• True RMS

AC A (RMS)
	Range	4.000/40.00/400.0A
	Accuracy	±3%rdg±5dgt[45-500Hz] (At the center of the circle formed by the flexible sensor)
	Accuracy
	Crest factor (CF)	Full scale CF<1.6, half scale<3.2 Effective input crest values are √2 times of the max values of each range.
	Crest factor (CF)
Conductor size		Ø70mm max.
Influence of Conductor position		Additional ±2% (max.) depending on the distance from the center position
Influence of Conductor position
Overload protection		500A AC for 10 seconds
Applicable standards		IEC 61010-1, IEC 61010-2-032 CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2 IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)


Operating temperature & humidity		0 - +50℃,less than 80% RH (without condensation)
Operating temperature & humidity		0 - +50℃,less than 80% RH (without condensation)
Storage temperature & humidity		-10 - +60℃,less than 70% RH (without condensation)
Storage temperature & humidity		-10 - +60℃,less than 70% RH (without condensation)
Power source		R03 / LR03(AAA)(1.5V)×2 ※Continuous measuring time：approx.120hours (Auto power off：approx.15 minutes)


Dimensions		120(L)×70(W)×26(D)：Display unit φ5.5mm approx.：Cable diameter 1.8m approx.：Cable length


Weight		200g approx. (including batteries)
Included Accessories		9174 (Carrying case) LR03(AAA)×2, Insruction manual
Included Accessories		9174 (Carrying case) LR03(AAA)×2, Insruction manual
