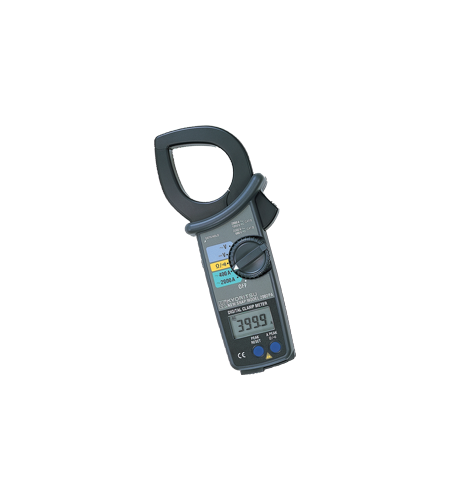

Spesifikasi KYORITSU MODEL 2002PA AC DIGITAL CLAMP METERS

AC Digital Clamp Meters

MODEL 2002PA

MODEL 2002PA
CE

• Can measure large AC current up to 2000A.
• Peak hold function.
• 55mm-dia large tear drop shaped jaws.
  • φ55
  • MAX2000A
  • ACV
  • DCV
  • Resistance
  • PeakHold10ms
  • OutPut
  • Continuitybuzzer

AC A 400A (0 - 400A)
±1%rdg±3dgt [50/60Hz]
±2%rdg±3dgt [40Hz - 1kHz]
2000A (0 - 1500A)
±1%rdg±3dgt [50/60Hz]
±3%rdg±3dgt [40Hz - 1kHz]
2000A (1500 - 2000A)
±3.0%rdg [50/60Hz]
AC V 40/400/750V
±1%rdg±2dgt [50/60Hz]
±1.5%rdg±3dgt [40Hz - 1kHz]
DC V 40/400/1000V ±1%rdg±2dgt
Ω 400Ω/4k/40k/400kΩ ±1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35Ω
Conductor size Ø55mm max.
Frequency response 40Hz - 1kHz
Output Recorder :
DC400mV against AC400A
DC200mV against AC2000A
Safety Standard IEC 61010-1 CAT III 600V , CAT II 1000V
IEC 61010-2-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) × 2
Dimensions 247(L) × 105(W) × 49(D)mm
Weight 470g approx.
Included Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) × 2
Instruction Manual
Optional Accessories 8008 (Multi-Tran)
7256 (Output cord)
