KYORITSU KEW 2003A AC/DC DIGITAL CLAMP METERS

Update Terakhir
03-03-2017
Dilihat Sebanyak
71 kali
Lokasi
Jawa Barat - Bekasi - Bekasi Utara
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

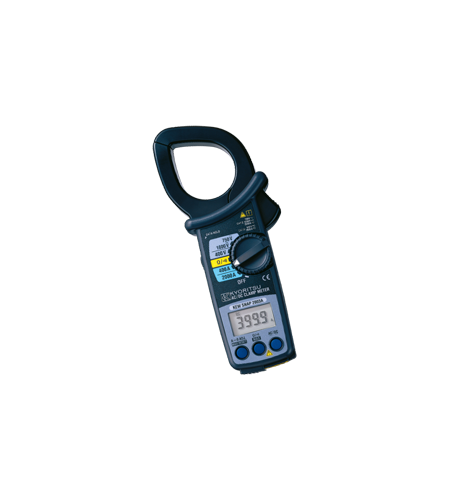

Spesifikasi KYORITSU KEW 2003A AC/DC DIGITAL CLAMP METERS



AC/DC Digital Clamp Meters

KEW 2003A

KEW 2003A
CE

• Equipped to measure both AC and DC current with transformer jaws of large diameter.
• Can measure AC and DC currents up to 2000A.
• Output terminal for connection to recorders.
  • CAT4 600V
  • φ55
  • MAX2000A
  • DCACA
  • DCACV
  • Resistance
  • Continuitybuzzer
  • DATAHOLD
  • OutPut
  • AutoPowerSave

AC A 400A/2000A (0 - 1000A)
±1.5%rdg±2dgt [50/60Hz]
±3%rdg±4dgt [40 - 500Hz]
±5%rdg±4dgt [500Hz - 1kHz]
2000A (1001 - 2000A)
±3%rdg±2dgt [50/60Hz]
DC A 400/2000A ±1.5%rdg±2dgt
AC V 400/750V
±1.5%rdg±2dgt [50/60Hz]
±1.5%rdg±4dgt [40Hz - 1kHz]
DC V 400/1000V ±1%rdg±2dgt
Ω 400/4000Ω ±1.5%rdg±2dgt
Continuity buzzer buzzer sounds below 50±35Ω
Conductor size Ø55mm max.
Frequency response 40Hz - 1kHz
Output Recorder :
DC400mV against AC/DC400A
DC200mV against AC/DC2000A
Safety Standard IEC 61010-1 CAT IV 600V , CAT III 1000V
IEC 61010-031
IEC 61010-2-032
Power source R6 (AA) (1.5V) × 2
Dimensions 250(L) × 105(W) × 49(D)mm
Weight 530g approx.
Included Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6 (AA) × 2
Instruction Manual
Optional Accessories 8008 (Multi-Tran) (AC only)
7256 (Output cord)
