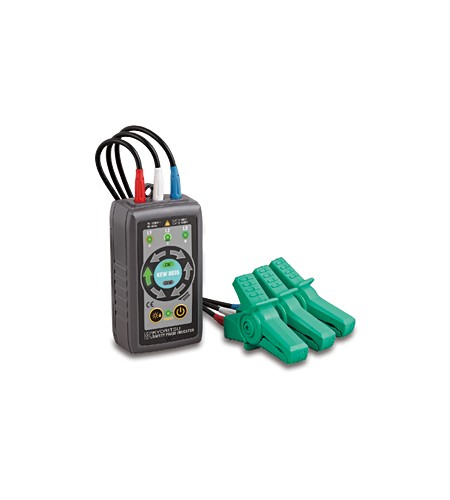

Spesifikasi KYORITSU KEW 8035 Non-Contact Safety Phase Indicator



Non-Contact Safety Phase Indicator

KEW 8035

KEW 8035
CE

• New technology permits safe testing, without the need of direct contact between probes and live wires.
• The insulated crocodile clips can clip insulated cables from φ2.4 to 30mm.
• Phase rotation is indicated by the rotary illumination of LEDs and logical audible tones.
• The instrument can be fixed to a metal panel via the magnet on the back side.
• Wide measuring range for 3 phase installations from 70V to 1000V AC.
• Super brightness function permits clear LED's indication also in sunshine.
• Complies with IEC 61010-1 CAT IV 600V and CAT III 1000V.
  • CAT4 600V

Functions Phase rotation (Clockwise or Counter Clockwise),
Presence of open phase
Detection method Electrostatic induction
Measuring voltage range From 70 to 1000V AC phase to phase (sine wave, continuous input)
Clamp diameter range From Ø2.4 to 30mm insulated cables
Measuring frequency range 45 to 66Hz
Phase rotation Clockwise:
Green arrow LEDs "rotate" in clockwise, Green symbol "CW" lits, Intermittent buzzer

Counter Clockwise:
Red arrow LEDs "rotate" in counter clockwise, Red symbol "CCW" lits, continuous buzzer
Visual indication Via LEDs with Super brightness function
Battery voltage warning Power LED blinks if battery voltage is too low.
Test leads Double insulated cables, length approx. 70cm
Colours code L1(U): RedL2(V): WhiteL3(W): Blue
Applicable standards IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree2,
IEC 61326-1, IEC 61557-1, -7
Operating temperature & humidity range Temperature/Humidity Ranges -10 to 50ºC, 80% (no condensation)
Storage temperature & humidity range Temperature/Humidity Ranges -20 to 60ºC, 80% (no condensation)
Power supply (DC battery) Alkaline battery (LR6) ×4
* Continuous use: Approx. 100 hours (Auto power off in about 10 min.)
Dimensions 112(L) × 61(W) × 36(D) mm
Weight 380g approx.
Included Accessories 9096 (Carrying case), Alkaline battery (LR6) × 4, Instruction manual
  • Product Catalogue
  • Instruction Manual

Product Catalogue

  • KEW8035 Product Catalogue (880 KB)
