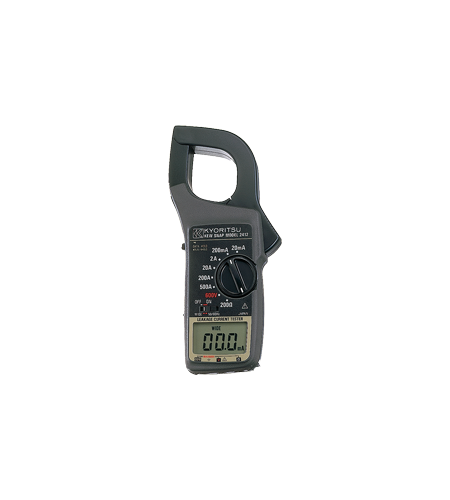

Spesifikasi KYORITSU MODEL 2412 Leakage Clamp Meters



Leakage Clamp Meters

MODEL 2412

MODEL 2412

• Digital clamp meter with tear drop shaped, medium size transformer jaws specially designed for leakage current measurement.
• Frequency filter switch to eliminate the effect of harmonics.
• Output terminal for connection to recorders and facility to operate from external power supply permit continuous leakage current monitoring.
• Resolution 0.01mA.
  • φ40
  • MAX500A
  • ACV
  • Resistance
  • OutPut
  • Filter
  • External

AC A (50/60Hz) 20/200mA/2/20/200/500A
±1.5%rdg±5dgt (20/200mA/2A)
±2%rdg±5dgt (20/200A)
±2.5%rdg±5dgt (500A)
AC A (WIDE) 20/200mA/2/20/200/500A
±1%rdg±3dgt [50/60Hz],
±5%rdg±5dgt [40 - 400Hz] (20/200mA/2A)
±1.5%rdg±3dgt [50/60Hz],
±5%rdg±5dgt [40 - 400Hz] (20/200A)
±2%rdg±3dgt [50/60Hz],
±5%rdg±5dgt [40 - 400Hz] (500A)
AC V 600V
±2%rdg±5dgt (50/60Hz)
±5%rdg±5dgt (40 - 400Hz)
Ω 200Ω ±1.5%rdg±5dgt
Conductor size Ø40mm max.
Frequency response 40 - 400Hz
Effect of external stray magnetic field φ15mm 100A 10mA AC max.
Output Recorder : DC200mV against the maximum value of each range (500A range is 50mV)
Power source 6F22 (9V) × 1 or AC Adaptor
Dimensions 209(L) × 96(W) × 45(D)mm
Weight 450g approx.
Included Accessories 7066A (Test leads)
9169 (Carrying case)
8025 (Plug for output jack)
6F22 × 1
Instruction Manual
Optional Accessories 8008 (Multi-Tran)*
8022 (AC adaptor) (110V)
8023 (AC adaptor) (220V)
7256 (Output cord)
