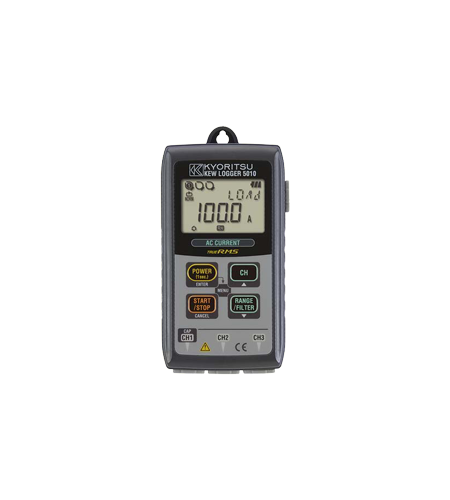

KYORITSU Loggers KEW 5010

• 3 channel inputs for the simultaneous recording of Leakage Current, Load Current and Voltage
• Large Capacity for storing 60,000 data points
  • 60,000 data points can be recorded when 1ch is used, and when all the three channels are used, 20,000 data points per channel can be recorded
• Lowpass Filter will filter out the harmonics (Cutoff Frequency = Approx. 160Hz)
• LED flickers when the preset current value is exceeded
• CALL: Confirmation of recorded data
  • The following can be displayed: number of recorded data points, (max+ min+ peak) value for each channel complete with time/date information in the Normal recording mode. (Detected values (i.e. when values are outside preset limits ) can be displayed in other recording modes)
  • RECALL: The last 10 recorded data points including time/date can be recalled on the logger display
• Selection of One-time mode or Endless mode
  • One-time on: Recording will stop when memory is used up
  • One-time off: Overwrite the old data, and store the latest data
• Non Volatile Memory
  Recorded data will be retained even if the batteries are exhausted or replaced due to the presence of a nonvolatile memory (guaranteed for 10 years)
• Battery power indicator
  Indicates battery voltage in 4-levels
  (It is possible to use the logger for a further approx. 24 hours even after the warming symbol is flashing)
• The userfriendly PC software "KEW LOG Soft 2" is supplied
  • Supplied with the user friendly software "KEW LOG Soft 2". This permits editing, analysis and graphical display of data.
  • The recorded data is downloadable onto a PC via USB cable.
• Continuous measuring time: Approx. 10 days (Alkaline Battery)

Normal Recording Mode
(AC 50/60Hz, Sine wave, Input: 10% or more of the range at CH1)

*Max, Min and Instant Peak values in Normal Recording mode are just reference values:
their accuracies aren't guaranteed.

Trigger Recording Mode (AC 50/60Hz sine wave)

Capture Recording Mode
