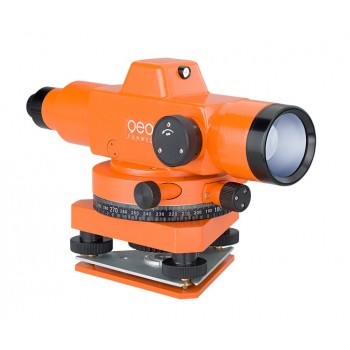

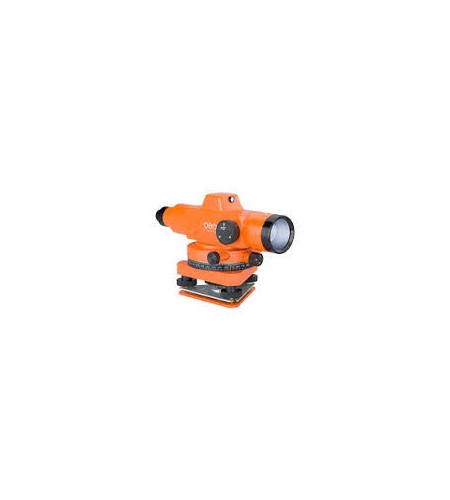

Waterpass Automatic Level GeoFennel FEN 132
Description :
Waterpass Automatic Level GeoFennel FEN 132
The Geo Fennel FEN 132 is a high quality engineers’ automatic level, 32 x Magnification with the most robust compensator available on the market. We Service, Repair and Calibrate the Geo Fennel Range
FEATURES
• Robust and temperature insensitive
• Highly accurate and free moving vertical axis
• Separate horizontal clamp
• Accurate tangent screw movement and focussing drive without backlash
• Optical sighting device
• Excellent image quality
• Service-friendly due to simple construction
TECHNICAL DATA
• Magnification: 32x
• Clear objective aperture: 45 mm
• Field of view: 1°
• Shortest focussing distance: 2 m
• Mean error per 1 km double levelling
Using index mark: < 1 mm
Without using index mark: ± 2 mm
• Multiplication constant: 100
• Working range of compensator: ± 15′
• Levelling accuracy compensator: 2″
• Circular bubble: 8′ / 2 mm
• Horizontal circle: 360°
• Dust / water protection: IP 54
• Dimensions: 280 x 160 x 140 mm
• Temperature range: -25°C – +50°C
• Weight: 3.4 kg.
