Spesifikasi Alat Survey - Total Station Geo Fennel FTS 102
Detail Produk Total Station Geo Fennel FTS 102
Description :

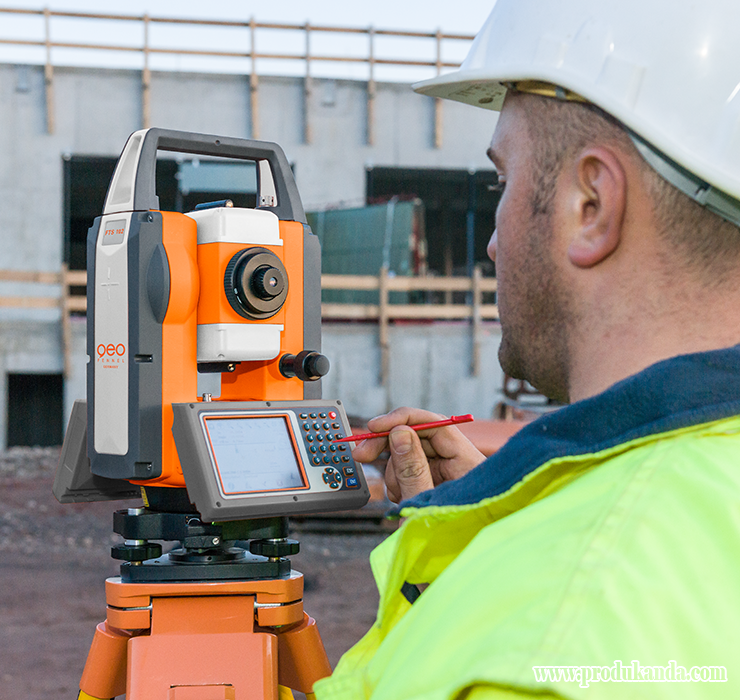

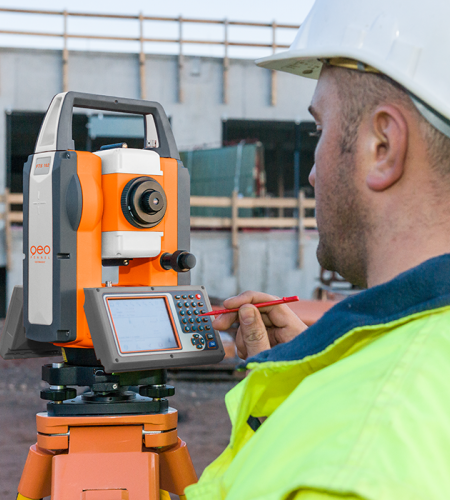

Total Station Geo Fennel FTS 102 Compact and robust
The geo-FENNEL Total Station FTS 102 is smart in its design and really easy to handle. It comes with the Windows CE based application software MicroSurvey FieldGenius or Carlson SurvCE optionally.Its touchscreen display greatly improves the workflow of accessing menus and software modes quickly and reliably. The FTS 102 features a full alphanumeric keypad as well as a “pop-up” keyboard which both ensure fast and accurate entering of data.
In addition to the already supplied applications the FTS 102’s software package also supports road planing, volume calculation and simple CAD options to make the work in the field much easier. Measurements can be easily transferred into different formats to or from existing softwares like AutoCAD and similar. Due to its usability it is easily possible to measure and check points, stake-out lines, single points as well as setting up the instrument fastly and accurately.
All features are smartly integrated in a compact and well designed instrument: Fast and long range EDM allows for measurements up to 3.500 m with standard prism and reflectorless up to 500 m. An integrated laser plummet allows a quick and accurate setup over measuring points also under difficult conditions. All total stations are equipped with the RS 96 stake out-aid from RS-Systems for fast and secure stake-outs. The FTS 102 measurements can be transferred by standard RS-232 cable but also by Bluetooth® or USB stick. Its two rechargeable Li-Ion batteries allow the use of the FTS 102 for even longer than one working day. All its connectors are well protected against dust and water which results
in IP 55.
Features
- Easy-to-use on-board software
- Easy-to-read display also in direct sunlight
- Fast import and export of different data formats without an additional software
- Fast and accurate measurements
- Intensity of the laser plummet can be changed gradually
- Compact and smart design.
Technical data
| Objective Telescope | |
| Image | Erect |
| Objective aperture | 45 mm |
| Magnification | 30 x |
| Field of view | 1° 30‘ |
| Resolving power | 3“ |
| Shortest focus distance | 1.0 m |
| Operation | |
| Reflectorless | 1 – 500 m |
| Reflective tape target | 1 – 800 m |
| Mini Prism | 1 – 1200 m |
| Single standard prism | 1 – 3500 m |
| Accuracy | ± 2 mm + 2 ppm |
| Angle measurement | |
| Minimum reading resolution | 1“ / 5“ |
| Angle accuracy | 2“ |
| Angle units | 100 % / 360° / 400 gon |
| Compensator | |
| Axis | 2 axis |
| Range | ± 3° |
| Vial sensitivity | |
| Plate level vial | 30“ / 2mm |
| Circular vial | 8‘ / 2 mm |
| Laser plummet | |
| Accuracy | ± 0.5 mm / 1.5 m |
| Laser class | 2 |
| Power supply | |
| Li-Ion battery | 4400 mAh |
| Operating time | 8 h |
| Display | |
| Dual TFT | 3.5“ colour display |
| Backlight | yes |
| Keyboard | 26 Keys |
| Data process | |
| CPU / clock frequency | 2 GB / 528 MHz |
| OS | Windows CE 5.0 |
| Application software | SurvCE / FieldGenius |
| I/F | RS-232C, Bluetooth®, USB |
| Other | |
| IP class | IP 55 |
| Operating temperature | – 20 °C – 50 °C |
| Dimensions | 183 x 342 x 167 mm |
| Weight | 5.4 kg |
