Spesifikasi Alat Survey - Digital Theodolite GeoMax Zipp02 Series

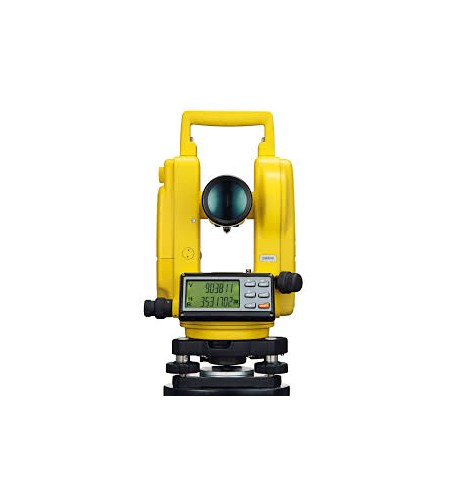

Detail Produk Digital Theodolite GeoMax Zipp02 Series

Closing the gap, Zipp02: For all your general construction tasks requiring accurate angle measurement. Affordable, easy to use, flexible – simply “Works when you do”.

Zipp02 – Closing the gap
With vertical compensation and 2″ accuracy the Zipp02 provides you with the precision required for your most demanding jobs for an affordable price without adding complexity. Various display modes, hold and set zero for horizontal angle, a variation of measurement units, simple distance measurement via stadia lines make an easy operation with only six keys. Visible laser plummet enables you to set up over a point faster and easier than ever. The Zipp02 is the tool of your choice when it comes to checking angles, alignments, grade work and short range levelling.





Angle measurements (Hz, V)
Precision 2”
Display resolution 1” or 5”
Display units DEG (360° 00’ 00”), GON (400), MIL (6400), V / %
Telescope
Magnification 30x
Objective aperture 45 mm (1.7 in)
Minimum focusing distance 1.35 m (4.43 ft)
Stadia multiplication factor/constant 100/0
Compensator
System Automatic vertical compensator, User set On/Off
Working Range ± 3’
Operation
Display Double side large character back-lit LCD
Keys 6 one touch button functions
Laser plummet
Type Visible laser point
Accuracy 1.5 mm at 1.5 m instrument height
Environmental conditions
Operating temperature -20° C ~ +50° C
Protection to dust and water Dust and water resistant, IP54
Weight
Weight including battery and tribrach 4.5 kg (9.9 lb)
Battery/Power management
Type of battery Rechargeable NiMH, replacement alkaline battery pack
Operation period without laser plummet 36 h
