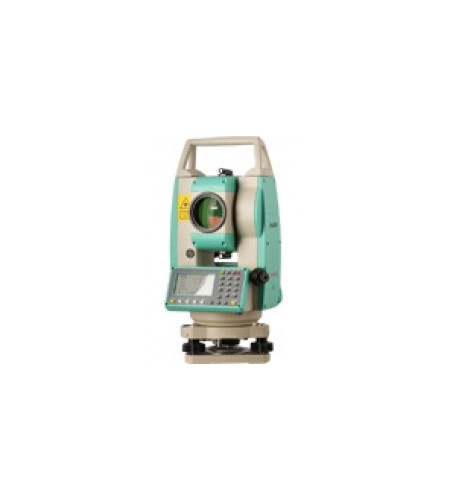

Gambar Produk
Alat Survey - Total Station Ruide RTS-822R3
Update Terakhir
13-03-2017
Dilihat Sebanyak
19 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Alat Survey - Total Station Ruide RTS-822R3
Detail Produk Total Station Ruide RTS-822R3
Spesifikasi :
|
RTS-822A/825A |
RTS-822R3/825R3 |
RTS-822R5/RTS-825R5 |
|
| TELESCOPE | |||
| Length |
154mm |
||
| Objective Lens Diameter |
Telescope: 45mm Distance Meter: 50mm |
||
| Magnification |
30x |
||
| Image |
Erect |
||
| Field of View |
1°30’ |
||
| Resolving Power |
3’ |
||
| Mini. Focus |
1.0m |
||
| DISTANCE MEASUREMENT | |||
| Single Prism |
2000m |
5000m |
|
| Non-Prism |
N/A |
300m |
500m |
| Accuracy – Prims Mode |
±(2mm+2ppm x D)m.s.e. |
||
| – Non-Prism |
N/A |
±(3mm+2ppm x D)m.s.e. |
|
| Measuring Time |
Fine: 1.2s, Normal: 0.7s |
Fine: 0.6s, Normal: 0.5s |
Fine: 0.3s, Normal: 0.2s |
| Meteorologic Correction |
Manual Input |
Auto Sensing |
|
| Prism Constant |
Manual Input |
||
| ANGLE MEASUREMENT | |||
| Method |
Absolute Encoding |
||
| Detecting System |
H: 2 sides V: 2sides |
||
| Min. Reading |
1”/5” |
||
| Accuracy |
2”/5” |
2”/5 |
2”/5 |
| Diameter of Circle |
79mm |
||
| Vertical Angle 0° |
Zenith: 0°/Horizontal: 0° |
||
| Unit |
360°/400gon/6400mil |
||
| DISPLAY | |||
| Display Unit |
Graphic LCD 160×90 dots with White Backlight |
||
| No. of Unit |
2 sides |
||
| Keyboard |
Alphanumeric Keys |
||
| TILT CORRECTION | |||
| Tilt Sensor |
Single Axis |
Dual Axis |
|
| Method |
Liquid Electric |
||
| Range |
±3’ |
±4’ |
|
| Accuracy |
1” |
||
| LEVEL SENSITIVITY | |||
| Plate Level |
30”/20mm |
||
| Circular Level |
8’/2mm |
||
| OPTICAL PLUMMET (OPTIONAL – INTERNAL LASER PLUMMET) | |||
| Image |
Erect |
||
| Magnification |
3X |
||
| Focusing Range |
0.3m ~ ∞ |
||
| Field of View |
5° |
||
| DATA STORAGE & INTERFACE | |||
| Internal Memory |
10,000 pts or 20,000 coord. (Fixed Only) |
>10,000 pts or >20,000 coord. (Fixed/SD/USB) |
|
| Data Interface |
RS232 |
R232/SD Card/Mini-USB |
|
| GENERAL | |||
| Laser Class – EDM |
Class II |
Class IIIA |
|
| -Laser Plummet |
Class II |
||
| Working Temperature |
-20°C ~ +50°C |
||
| Battery Type |
Rechargeable Ni-H Battery |
||
| Battery Voltage |
DC 6V |
||
| water & dust proof |
IP66 |
||
| Working Time |
8h |
16h |
|
