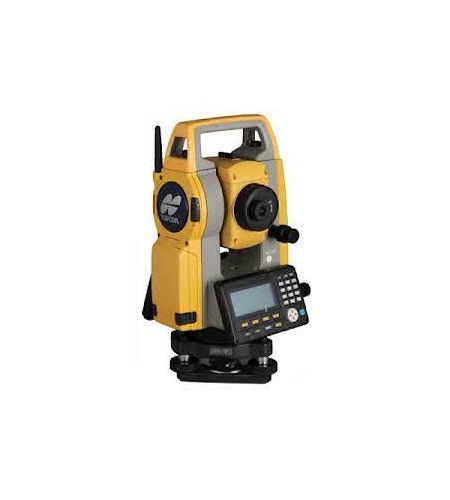

Alat Survey - Total Station Topcon ES 101

Update Terakhir
13-03-2017
Dilihat Sebanyak
32 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Alat Survey - Total Station Topcon ES 101

Detail Produk Total Station Topcon ES 101

Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology

Product description The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

World’s First TSshield™ Remote Security and Notification System
  • Disable your instrument remotely if lost or stolen
  • Get notified of Firmware updates
  • Online instrument operational history
  • See more here…
Ultra-Powerful, Advanced EDM
  • 500m non-prism range
  • 4000m prism range
  • Less than 1 second fine measurement
The exclusive LongLink™ communications functionality in every ES Series
model provides operational capabilities never before offered in a manual total
station. With a 300m range wireless communication using Bluetooth Class
1 technology, you can now operate the data collector from the “smart-spot”
of the crew, the prism pole. Also referred to the two-man, economical robot
solution, Topcon’s new LongLink™ technology brings a whole new level of
flexibility to your manual field crew.
Advanced Angle Encoder System
  • “Best in Class” 1” angle accuracy available
  • Incorporates exclusive IACS (Intelligent Automatic Calibration System) on 1” & 2” models
Ultimate in Rechargeable operation – 36 Hours!
  • Up to 36 hours of operation on a single charge.*1
  • Eliminates the need for nightly recharging and carrying extra batteries.
  • Work with confidence all day without the worry of dead batteries.
Rugged, Waterproof Design
  • Waterproof/Dustproof IP66 design handles the toughest environments
  • Magnesium-alloy housing providing stable angle accuracy Completely
Easy Access USB 2.0 Memory
  • Up to 8MB storage
  • Environmentally protected
  • Compatible with industry standard accessories and cables

*1 Operating time may vary depending on environmental conditions and type of work being performed.

QUICK Specifications
Angle Measurement
  Min. Resolution/Accuracy
ES-101 0.5”/1”
ES-102 1”/2”
ES-103 1”/3”
ES-105 1”/5”
ES-107 1”/7”
IACS (Independent Angle Calibration System) Standard om 1” & 2” models
Compensation Dual-axis compensator
Distance Measurement
Prism EDM Range 4000m (ES-107 3000m)
Prism EDM Accuracy 2mm+2ppm
Non-Prism Range 500m
Non-Prism Accuracy 3mm+2ppm (0.3-200m)
Measuring Time Fine: 0.9 sec
Rapid: 0.7 sec
Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard Dual, Graphic, Backlit
LCD (ES-107 Single)
Battery Operation up to 36 hours
Dust/Water Protection IP66
Wireless Connection Bluetooth Class 1
Operating Range -20C to +50C
-30C to +50C *
-20C to +60C **

Available Accessories:

•    Unit Topcon Totalstation
•    2 x Aluminum Tripod
•    1 x Prisma Polygon
•    1 x Range Pole
•    1 x Single Prism
•    1 x Cable Data
•    1 x Software Data
