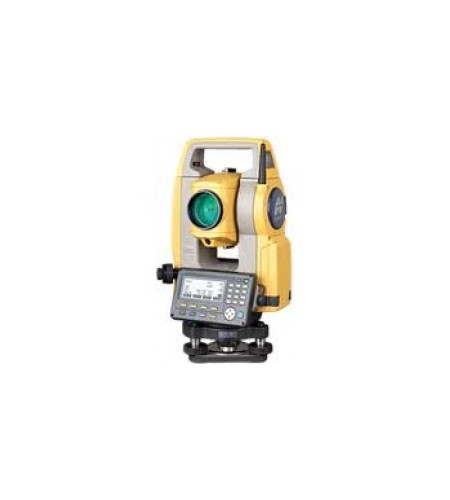

Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology
Product description The new Total Station Topcon ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small, sleek design – you’ll appreciate the advantages from the very first measurement.
Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.
Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.
 |
World’s First TSshield™ Remote Security and Notification System
|
 |
Ultra-Powerful, Advanced EDM
|
 |
 The exclusive LongLink™ communications functionality in every ES Seriesmodel provides operational capabilities never before offered in a manual total station. With a 300m range wireless communication using Bluetooth Class 1 technology, you can now operate the data collector from the “smart-spot” of the crew, the prism pole. Also referred to the two-man, economical robot solution, Topcon’s new LongLink™ technology brings a whole new level of flexibility to your manual field crew. |
 |
Advanced Angle Encoder System
|
 |
Ultimate in Rechargeable operation – 36 Hours!
|
 |
Rugged, Waterproof Design
|
 |
Easy Access USB 2.0 Memory
|
*1 Operating time may vary depending on environmental conditions and type of work being performed.
| QUICK Specifications | |
| Angle Measurement | |
| Min. Resolution/Accuracy | |
| ES-101 | 0.5”/1” |
| ES-102 | 1”/2” |
| ES-103 | 1”/3” |
| ES-105 | 1”/5” |
| ES-107 | 1”/7” |
| IACS (Independent Angle Calibration System) | Standard om 1” & 2” models |
| Compensation | Dual-axis compensator |
| Distance Measurement | |
| Prism EDM Range | 4000m (ES-107 3000m) |
| Prism EDM Accuracy | 2mm+2ppm |
| Non-Prism Range | 500m |
| Non-Prism Accuracy | 3mm+2ppm (0.3-200m) |
| Measuring Time | Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec |
| Communications | |
| LongLink™ rover communications utilizing Class 1 Bluetooth | |
| USB 2.0 Slot | |
| RS-232C Serial | |
| General | |
| Display/Keyboard | Dual, Graphic, Backlit LCD (ES-107 Single) |
| Battery Operation | up to 36 hours |
| Dust/Water Protection | IP66 |
| Wireless Connection | Bluetooth Class 1 |
| Operating Range | -20C to +50C -30C to +50C * -20C to +60C ** |
Available Accessories:
• Unit Topcon Totalstation
• 2 x Aluminum Tripod
• 1 x Prisma Polygon
• 1 x Range Pole
• 1 x Single Prism
• 1 x Cable Data
• 1 x Software Data
