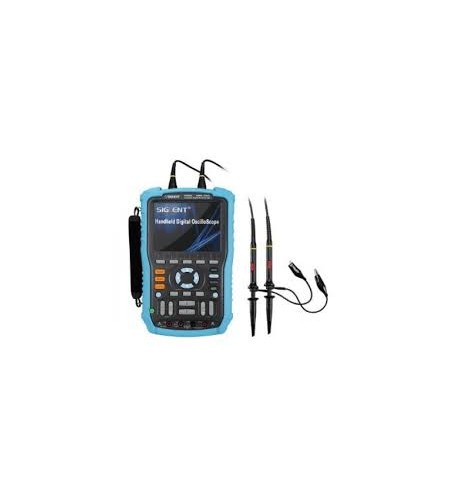

Siglent SHS806 Handheld Oscilloscope (Dual-Channel, 60MHz Bandwidth)
Perhatian!
Spesifikasi Siglent SHS806 Handheld Oscilloscope (Dual-Channel, 60MHz Bandwidth)
Siglent SHS806 Handheld Oscilloscope (Dual-Channel, 60MHz Bandwidth)
- Handheld device with dual-channel
- 5.7inch high quality display
- 60MHz bandwidth
Description
Siglent SHS806 Handheld Oscilloscope (Bandwidth 60MHz, 2 Channel) Details
The SHS806 is a portable oscilloscope that is ideally suited for use in outdoor applications, circuit measurements, wind power, PV and new energy equipment testing, automotive electron and electric automobile testing, electrical power systems and strong electricity testing, electrical debug testing, education, scientific research and quality control.
In fact this device is more than just a digital handheld oscilloscope; the SHS806 is a combined unit which includes an oscilloscope, multimeter and recorder for documenting waveforms using Trendplot and waveform Recorder. All of this is built into the same unit, making this product ideal for a wide range of different testing scenarios like those listed above.
This product features bandwidth of 60MHz and is able to measure both single channel (with real time sampling rate of 1GSa/s) and double channel (real time sampling rate of 500MSa/s) and has overall memory depth of 2Mpts.
The screen of this device is 5.7 inches in size, and is full-colour for easy waveform tracking and viewing. The in-built multimeter in the device is capable of measuring DC/AC Voltage, DC/AC current, resistance, diode, capacitance and continuity.
Additional features of this product include rise time of ≤5.8ns, input impedance of 1MΩ±2%, 18pf±3pf, equivalent sampling rate of 50GS/s and multiple trigger types (Edge, Pulse, Video, Slope and Alternative).
Siglent SHS806 Handheld Oscilloscope Key Features
- 60MHz bandwidth
- Real time sampling rate of 1GSa/s
- Equivalent sampling rate of 50GSa/s
- Memory depth of 2Mpts
- Built in data-recorder with 7m internal storage and up to 18 hours recording time
- USB port allows up to 3000 hours recording time
- Record, replay and zoom on measurements
- Built-in high precision multimeter measures DC/AC Voltage, DC/AC Current, resistance, diode, capacitance and continuity
- 6000 count display for multimeter
- Includes 32 measurement TrendPlot analyser with scope of 800k points capacity (more than 24 hours recording time
- Dual or single channel waveform measurements
- Suitable for use in a wide variety of different applications
- 5.7 inch TFT colour LCD display
- Trigger Modes: Automatic, Normal and Simple
- Trigger Types: Edge, Pulse, Video, Slope and Alternative
- 32 automatic measurements and 3 cursor measure modes
- 4 digital filter mode: low pass, high pass, band pass and band limit
- Multiple language user interface
- USB device and USB host built-in
- Rechargeable battery pack
Full List of Products Included
- Siglent SHS806 Handheld Oscilloscope
- 9V, 4A Power Adapter
- Two 1X/10X Oscilloscope Probes
- Two Test Leads for Multimeter
- Probe Calibration Accessory
- USB Data Transmitting Cable
- User Manual
- Warranty Card
- Easyscope Software (Used for PC control)
Technical Specification
| Type | SHS806 | SHS810 | SHS815 | SHS820 |
| Bandwidth | 60MHz | 100MHz | 150MHz | 200MHz |
| Rise Time | ≤5.8ns | ≤3.5ns | ≤2.3ns | ≤1.7ns |
| Input Impedance | 1MΩ±2％, 18pf±3pf | |||
| Real Time Sampling Rate | Single Channel: 1GSa/s, Double Channels: 500MSa/s |
500MSa/s | ||
| Equivalent Sampling Rate | 50GSa/s | |||
| Memory Depth | 2Mpts | 32Kpts | ||
| Time Base Range | 5 ns/ div – 50s/ div | 2.5 ns/ div – 50s/ div | ||
| Scan Range | 100ms/ div ～ 50s/ div | |||
| Vertical Sensitivity | 2mV/div – 100V/div(1-2-5 step) | |||
| Vertical Resolution | 8 bits | |||
| Trigger Types | Edge, Pulse, Video, Slope, Alternative | |||
| Frequency Counter | 6 bits | |||
| Connection | USB Device, USB Host | |||
| Math | +, -, * , /, FFT | |||
| Oscilloscope Trend Plot | 800K points | |||
| Multimeter Specification | ||
| Display | 6000 | |
| Item | Range | Accuracy |
| DC Voltage | 60mV – 1000V | ±1%±15digit |
| AC Voltage | 60mV –750V | ±1%±15digit |
| DC Current | 60mV -10A | ±1%±5digit |
| AC Current | 60mV -10A | ±1%±5digit |
| Capacitance | 40.00nF | ±3%±10digit |
| 400.0nF-400.0uF | ±4%±5digit | |
| Resistance | 600Ω – 60MΩ | ±1%±5digit |
| Continuity buzzer | <50Ω | |
| Diode | 0V～2.0V | |
| Trend plot | 1.2M points | |
| Recorder | 7M pionts | |
| Measuring mode | Manual/Auto | |
| General Features | ||
| Display | 5.7 inches color TFT-LCD, 320*234 | |
| Power Supply | Charging/Battery | |
| Power mode | Lithium battery: 7.4V 5000mAh, Battery lasts 5 hours; DC adapter, 100-240V 50/60Hz input, 9V 4A output | |
| Weight | 1.5Kg | |
| Dimension | 163.2mm×259.5mm×53.3mm | |
