Spesifikasi GW Instek GOS-622G Analog Oscilloscope

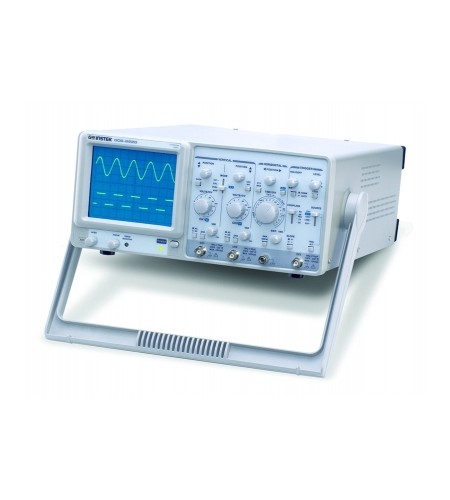

GW Instek GOS-622G Analog Oscilloscope
Features
- 20MHz Bandwidth, Dual Channel
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- Hold Off Function
- CH1 Output
Description
The GOS-635G and GOS-622G are general purpose analog oscilloscopes with 35MHz and 20MHz bandwidth, respectively. These products are designed for a wide range of applications ranging from product designs or assembly lines to EE laboratories or class experiments. Featuring a low vertical sensitivity at 1mV/div and versatile triggering, the GOS-635G and GOS-622G can reliably capture small signals. The GOS-635G/622G is the highest performance/price solution in the Test & Measurement market.
Specification
|
GOS-635G |
GOS-622G |
|
|
Digital / Analog |
Analog |
|
|
Display |
6″ CRT |
|
|
Bandwidth (MHz) |
35 |
20 |
|
Number of Channel |
2 |
2 |
|
Vertical Sensitivity |
1mV ~ 5V |
|
|
Time Base Range |
0.1μs ~ 0.5s |
|
|
Input Impedance Selection |
1MΩ |
|
|
Auto Measurement |
– |
|
|
Waveform Memory |
– |
|
|
Panel Setup Memory |
– |
|
|
Auto-Set |
– |
|
|
Auto/Normal Trigger |
V |
|
|
ALT Trigger |
V |
|
|
TV Trigger |
V |
|
|
Cursor Readout |
– |
|
|
XY Mode |
V |
|
|
Zoom |
– |
|
|
Counter Function |
– |
|
|
Function Generator |
– |
|
|
Interface |
– |
|
|
Buzzer Alarm |
– |
|
|
Battery Power Operation |
– |
|
|
LED Indicators |
– |
|
|
Z-Axis Input |
V |
|
|
Power Source |
AC 100/120/220/230V ±10% |
|
Accessories
User manual x 1, Power cord x 1
GTP-060A-4 : 60MHz ( 10 : 1/1 :1 ) Switchable Passive Probe for GOS-635G/GOS-622G (one per channel)
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
GTC-001 Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002 Instrument cart, 330(W) x 430(D)mm (120V input socket)
