Spesifikasi GW Instek GOS-630FC Analog Oscilloscope

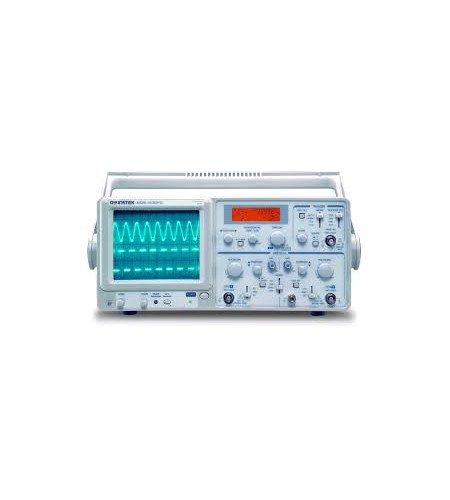

GW Instek GOS-630FC Analog Oscilloscope
Features
- 1mV/div High Vertical Sensitivity
- Internal 5 Digits Real-Time Frequency Counter
- LCD Readout Display for Vertical/ Horizontal/Frequency Measurement
- Auto Time-Base
- Buzzer Alarm
- TV(TV-V, TV-H) Trigger Modes
- XY Mode
- Z-Axis Input and External Trigger Input
Description
The Economic Oscilloscope GOS-630FC establishes a brand new benchmark for similar categories. New and innovative functions, including LCD Readout Display, Frequency Counter, and Auto Time-Base setting, are provided as standard features. With a 30MHz bandwidth and valuable features, GOS-630FC is priced at the basic Oscilloscope level. 1mV/div High Vertical Sensitivity is able to capture small signal variations in the input source. Additional functions, such as XY mode display, MAG function (Time based Magnified), and Z-axis Input, extend the application range of GOS-630FC to both education and industry fields.
The added values without being converted into extra cost make the GOS-630FC the most beneficial choice among the entry-level analog oscilloscopes available in today’s market.
Specification
|
GOS-630FC |
|
|
Digital / Analog |
Analog |
|
Display |
6″ CRT |
|
Bandwidth (MHz) |
30 |
|
Number of Channel |
2 |
|
Vertical Sensitivity |
1mV ~ 5V |
|
Time Base Range |
0.2μs ~ 0.5s |
|
Input Impedance Selection |
1MΩ |
|
Auto Measurement |
– |
|
Waveform Memory |
– |
|
Panel Setup Memory |
– |
|
Auto-Set |
V, Only Provided Time-Base Function. |
|
Auto/Normal Trigger |
V |
|
ALT Trigger |
V |
|
TV Trigger |
V |
|
Cursor Readout |
– |
|
XY Mode |
V |
|
Zoom |
– |
|
Counter Function |
V |
|
Function Generator |
– |
|
Interface |
– |
|
Buzzer Alarm |
V |
|
Battery Power Operation |
– |
|
LED Indicators |
– |
|
Z-Axis Input |
V |
|
Power Source |
AC 115/230V ±15% |
Accessories
User manual x1
Power cord x1
GTP-060A-4: 60MHz (10:1/1:1) Switchable passive probe (one per channel)
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
GTC-001 Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002 Instrument cart, 330(W) x 430(D)mm (120V input socket)
