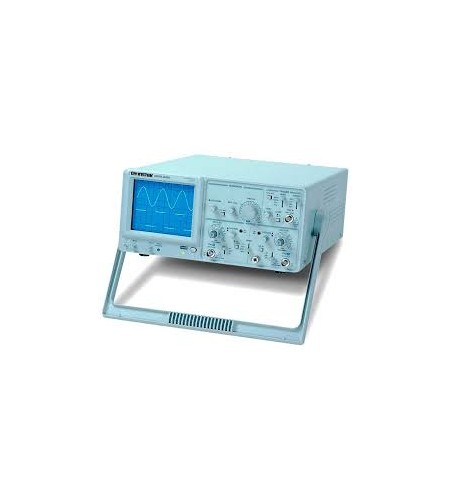

GW Instek GOS-620 Analog Oscilloscope
Perhatian!
Spesifikasi GW Instek GOS-620 Analog Oscilloscope
GW Instek GOS-620 Analog Oscilloscope
Features
- 20MHz Bandwidth, Dual Channel
- High Sensitivity 1mV/div
- TV Synchronization
- Z-Axis Input
- ALT Triggering Function
- CH1 Output
Description
The GOS-620 and GOS-630 Analog Oscilloscope delivers the most economic solution for measurement demand. Offering 1mV ~ 5V vertical sensitivity, 0.2s/div ~ 0.5s/div sweep time, and useful Auto/Norm/TV-V/TV-H trigger modes, the GOS-620 is the best economic choice for education, production lines, and repair service application at a reasonable price.
Specification
|
GOS-630 |
GOS-620 |
|
|
Digital / Analog |
Analog |
|
|
Display |
6″ CRT |
|
|
Bandwidth (MHz) |
30 |
20 |
|
Number of Channel |
2 |
2 |
|
Vertical Sensitivity |
1mV ~ 5V |
|
|
Time Base Range |
0.2μs ~ 0.5s |
|
|
Input Impedance Selection |
1MΩ |
|
|
Auto Measurement |
– |
|
|
Waveform Memory |
– |
|
|
Panel Setup Memory |
– |
|
|
Auto-Set |
– |
|
|
Auto/Normal Trigger |
V |
|
|
ALT Trigger |
V |
|
|
TV Trigger |
V |
|
|
Cursor Readout |
– |
|
|
XY Mode |
V |
|
|
Zoom |
– |
|
|
Counter Function |
– |
|
|
Function Generator |
– |
|
|
Interface |
– |
|
|
Buzzer Alarm |
– |
|
|
Battery Power Operation |
– |
|
|
LED Indicators |
– |
|
|
Z-Axis Input |
V |
|
|
Power Source |
AC 115/230V ±15% |
|
Accessories
User manual x 1
Power Cord x 1
GTP-020A-4: 20MHz (10:1/1:1) Switchable passive probe for GOS-620(one per channel)
GTP-060A-4: 60MHz (10:1/1:1) Switchable passive probe for GOS-630(one per channel)
Optional Accessories
GTL-110 Test lead, BNC-BNC heads
GTC-001 Instrument cart, 450(W) x 430(D)mm (120V input socket)
GTC-002 Instrument cart, 330(W) x 430(D)mm (120V input socket)
