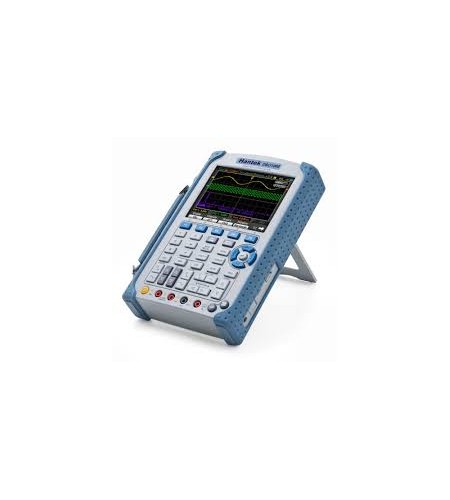

Hantek DSO1060 Handheld Oscilloscope
Update Terakhir
13-03-2017
Dilihat Sebanyak
14 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Hantek DSO1060 Handheld Oscilloscope
Hantek DSO1060 Handheld Oscilloscope
Overview
- Excellent industrial design. Direct key for each channel, time base, trigger and DMM, easy to operate.
- Large 5.7 inch TFT color LCD display, LED backlight, display clearly.
- USB host/device 2.0 full-speed interface, support removeable disk, RS-232/LAN option, easy to control by PC or long-distance.
- High bandwidth 60MHz-200MHz oscilloscope, and 6000 COUNTS high precision DMM.
- High refresh rate. High real-time sample rate 250MSa/s or 500MSa/s. 50GSa/s equivalent-time sample rate.
- FFT, +, -, x, ÷, X-Y, 22 types of auto measurements, PASS/FAIL check, easy to use on production line.
- Multiform trigger mode, 2 separate time base in ALT trigger mode, easy to observe 2 signals with different frequency.
- 1000 waveforms save and record.
- Battery power operation (installed) and industrial design.
- Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
- Dimensions (mm): 240(L)x165(W)x50(H), be carried easily.
- Labview\VB\VC Second Design instance.
Parameters
| Model | DSO1200 | DSO1060 |
| Bandwidth | 200MHz | 60MHz |
| Channel | 2 | |
| Real-Sample Rate | 500MSa/s | 250MSa/s |
| Equivalent Sample Rate | 50GSa/s | |
| Record Length | 32K | |
| Rish time | ≤1.7ns | ≤5.8ns |
| Timebase Accuracy | ±50ppm | |
| Time Base Range | 5ns/div-1000s/div | |
| Video Help | — | |
| SD Card | — | |
| Input Impandance | 1MΩ ΙΙ 15pF | |
| VOLTS/DIV Range | 10mV/div～5V/div | |
| A/D Converter | 8bit | |
| Position Range | ±50V(5V/div), ±40V(2V/div～500mV/div), ±2V(200mV/div～50mV/div), ±400mV(20mV/div～2mV/div) |
|
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 5V/div to 10mV/div; ±4% for Normal or Average acquisition mode, 5mV/div to 2mV/div |
|
| Bandwidth Limit | 20MHz | |
| Trigger Types | Edge, Video, Pulse, Alternative | |
| Trigger Source | CH1, CH2 | |
| Math | +, -, x, ÷, FFT, Invert | |
| Cursor Measurement | Voltage difference between cursors: △V; Time difference between cursors: △T; Reciprocal of △T in Hertz (1/ΔT); |
|
| Auto Measuerment | Frequency, Period, Mean, Pk-Pk, Cycli RMS, Minimum, Maximum, Rise time, Fall Time, +Pulse Width, -Pulse Width, Delay1-2Rise, Delay1-2Fall, +Duty, -Duty, Vbase, Vtop, Vmid, Vamp, Overshoot, Preshoot, Preiod Mean, Preiod RMS, FOVShoot, RPREShoot | |
| The float voltage between BNC and Ground | — | |
| The float voltage between each Channel | — | |
| The float voltage between Multimeter and Ground | — | |
| between input Ports directly | — | |
| Input by 10:1 probe | — | |
| DMM Max. Resolution | 6,000 Counts | |
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | |
| Max. Input Voltage | AC: 600V, DC: 800V | |
| Max. Input Current | AC:10A , DC: 10A | |
| Max. Input Impandance | 10MΩ | |
| Display | 5.7″ TFT 16K Color Display, 320*240 dots | |
| Size | 245mm x 163mm x 52mm | |
| Weight | 1.3KG(Without Package) | |
| Standard Probe | PP200x2 | PP80x2 |
| DMM Mode | |||
| Max. Resolution | 6000 Counts | ||
| DMM Testing Modes | Voltage, Current, Resistance, Capacitance, Diode & Continuity | ||
| Max. Input Voltage | AC:600V, DC: 800V | ||
| Max. Input Current | AC: 10A, DC:10A | ||
| Input Impedance | 10MΩ | ||
| DMM TrendPlot | 1.2M Point | ||
| Range | Resolution | Accuracy | Resolution |
| DC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| 800V | 1V | ||
| AC Voltage | 60.00mV | ±1%±3 digit | 10uV |
| 600.0mV | 100uV | ||
| 6.000V | 1mV | ||
| 60.00V | 10mV | ||
| 600.0V | 100mV | ||
| DC Current | 60.00mA | ±1%±5 digit | 10uA |
| 600.0mA | ±1.5%±5 digit | 100uA | |
| 6.000A | 1mA | ||
| 10.00A | 10mA | ||
| AC Current | 60.00mA | ±1%±5 digit | 10uA |
| 600.0mA | ±1.5%±5 digit | 100uA | |
| 6.000A | 1mA | ||
| 10.00A | 10mA | ||
| Resistance | 600Ω | ±1%±3 digit | 0.1Ω |
| 6.000KΩ | 1Ω | ||
| 60.00KΩ | 10Ω | ||
| 600.0KΩ | 1KΩ | ||
| 6.000MΩ | 10KΩ | ||
| 60.00MΩ | ±1%±5 digit | 100KΩ | |
| Capacitance | 40.00nF | ±2%±5 digit | 10pF |
| 400.0nF | 100pF | ||
| 4.000uF | 1nF | ||
| 40.00uF | 10nF | ||
| 400.0uF | 100nF | ||
| Attention: the smallest capacitance value that can be measured in 5nF | |||
| Diode | 0V~2.0V | ||
| ON-OFF test | <10Ω | ||
