Spesifikasi ATTEN ADS-1152CML Digital Oscilloscope

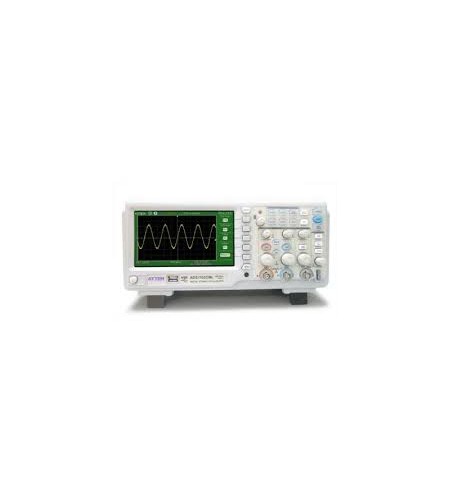

ATTEN ADS-1152CML Digital Oscilloscope
Product Description
The ADS-1000CML series is considered for the replacement of analog oscilloscope and further promoted as a personal DSO affordable to any situation such as each student in educational labs, service technicians, or industrialfield needing big quantity. With the easy to use user interface available in 12 different languages, its truly a global player
Features
- The new ultra-thin design, small size and more convenient to carry
- Color TFT LCD display, waveform display is more clear and stable
- Extensive trigger functions: edge, pulse, video, slope, alternate
- Unique digital filter and waveform recorder
- Pass / Fail function
- 2Mpts global overview of the storage depth, detailed presentation
- 32 automatic measurements
- 2 set of reference waveforms, 20 groups of common waveforms, 20 groups of settings within the store / recall; support waveform, set, CSV and bitmap files U disk external storage and recall
- 5 Math :+,-,*, FFT
- Screen protection function (1-5 minutes)
- Manual, tracking, automatic cursor measurement function
- Channel waveform and FFT waveforms at the same time split-screen display
- Analog channel waveform mesh screen brightness and brightness adjustable
- Pop-up menu display mode, the user operation more flexible, natural
- Rich interface display style: classic, modern, traditional, simple
- Multilingual interface display, embedded online help, a key storage, one-touch printing functions
- Standard interface: USB Host: Support U disk U disk storage and a system through software upgrades; USB Device: support for PictBridge direct printing and PC connection with the remote control; RS-232.
Specification
|
Input |
||||
| Input Coupling | AC, DC, GND | |||
| Input Impedance | DC: 1MΩ ± 2% || 17pF ± 3pF AC: 1.2 MΩ ± 2% || 17pF ± 3pF, < =100mV/div 1.0 MΩ ± 2% || 17pF ± 3pF, >100mV/div |
|||
| Maximum Input Voltage | ± 400V PK-PK CATI | |||
| Ch to Ch Isolation (Both channels in same V/div setting) |
>100:1 at 20 MHz | |||
| Probe attenuator | 1X, 10X | |||
| Probe attenuator | 1X, 10X, 100X, 1000X | |||
|
Horizontal System |
||||
| Real Time Sampling Rate | Single Channel 1 GSa/S; Double Channels 500 MSa/s | |||
| Equivalent Sampling Rate | 50GSa/s | |||
| Measure Display Modes | main, window, window zoom, scan, x-y | |||
| Timebase Accuracy | ±100ppm measured over 10 ms interval | |||
| Time Window | 18 Divisions | |||
|
Vertical System |
||||
| Vertical Sensitivity | 2mV-10V/div at input BNC (1-2-5 order) | |||
| Channel voltage offset range | 2 mV-200mV: ±1.6V 206mV-10V: ± 40V in Fixed Gain Ranges & Variable Gain Ranges |
|||
| Vertical Resolution | 8 bit | |||
| Channels | 2 | |||
| Analog Bandwidth (at input BNC) | 100 MHz | |||
| BW Flatness | DC-10% of rated BW: ± 1dB 10%-50% of rated BW: ± 2dB 50%-100% of rated BW: ± 3dB |
|||
| Lower frequency limit (AC -3dB) | ≤10 Hz (at input BNC) | |||
| Noise: Pk-Pk for 3K record | ≤ 0.6 Div for average of 10Pk-Pk readings in fixed gain settings. < = 0.7 Div for average of 10 Pk-Pk readings, Variable gain settings |
|||
| SFDR including harmonics | ≥ 40dB | |||
| DC Gain Accuracy | < ± 3.0%: 5mV/div to 5V/div in Fixed Gain Ranges < ± 4.0%:typical for 2mV/div and Variable Gain Ranges |
|||
| DC Measurement Accuracy: All Gain settings ≤100mV/div |
± [3%X (|reading|+|offset|) +1% of |offset| +0.2div+2mV] +0.2div+2mV] |
|||
| DC Measurement Accuracy: All Gain settings>100mV/div |
± [3%X (|reading|+|offset|) +1% of |offset| +0.2div+100mV] | |||
| Math operation | +,-, *,FFT | |||
| FFT | Window mode: Hanning, Hamming, Blackman, Rectangular | |||
| Bandwidth limiter | 20MHz ± 40% Typical (Note: BW limited below 20MHz ± 40% when using probe X1) | |||
|
Trigger System |
||||
| Trigger Types | Edge, Pulse Width, Video, Slope, Alternative | |||
| Trigger Modes | Auto, Normal, Single | |||
| Trigger Sources | Ch1-2, EXT, EXT/5, AC Line | |||
| Trigger Coupling | AC, DC, LF rej, HF rej | |||
| Trigger Level Range | CH1, CH2: ±6divisions from center of screen EXT: ±1.2V EXT/5: ± 6V |
|||
| Trigger Level Accuracy (typical) applicable for the signal of rising and falling time ≥ 20ns | Internal: ±(0.2 div×V/div)( within ± 4 divisions from center of screen) EXT: ±(6% of setting + 40 mV) EXT/5: ±(6% of setting + 200 mV) |
|||
| Edge Trigger | Edge type: Rising, Falling, Rising and Falling | |||
| Pulse Width Trigger | Trigger Modes: (>,<,=) Positive Pulse Width, (>,<,=)Negative Pulse Width Pulse Width Range: 20ns-10s | |||
| Video Trigger | Support signal Formats: PAL/SECAM, NTSC Trigger condition: odd field, even field, all lines, line Num |
|||
| Slope Trigger | (>,<,=) Positive slope, (>,<,=)Negative Slope Time: 20ns-10s |
|||
| Alternative Trigger | CH1 trigger type: Edge, Pulse, Video, Slope CH2 trigger type: Edge, Pulse, Video, Slope |
|||
|
Control Panel Function |
||||
| Auto Set | Auto adjusting the Vertical, Horizontal system and Trigger Position | |||
| Save/Recall | Support 2 Group referenced Waveforms, 20 Group setups, 20 Group captured Waveforms internal Storage/Recall function and USB flash driver storage function. |
|||
|
Hard Ware Frequency Counter |
||||
| Reading resolution | 6 Bytes | |||
| Accuracy | ± 0.01% | |||
| Range | DC Couple, 10Hz to MAX Bandwidth | |||
| Signal Types | Satisfying all Trigger signal (Except Pulse width trigger and Video Trigger) | |||
|
Acquisition System |
||||
| Sample Types | Real time, Equivalent time | |||
| Memory Depth | Channel Mode | Sampling Rate | Short memory | Long Memory |
| Single Channel | 1GS/s | 40kpts | No Support | |
| Single Channel | 500 MSa/s or lower | 20 Kpts | 2 Mpts | |
| Double Channels | 500 MSa/s or lower | 20 Kpts | 1 Mpts | |
| Sample Mode | Sample, Peak Measure, Average | |||
| Averages | 4,16,32,64,128,256 | |||
|
Measure System |
||||
| Auto Measure | Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Mean, Crms, Vrms, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Rise time, Fall time, Freq, Period, +Wid, -Wid, +Dut, -Dut, Bwid, Phase, FRR, FRF, FFR, FFF,LRR,LRF, LFR, LFF | |||
| Cursor Measure | Manual mode, Track mode and Auto mode | |||
|
Display |
||||
| Display Mode | Color TFT 7″ diagonal Liquid Crystal Display | |||
| Resolution | 480 horizontal by 234 vertical pixels | |||
| Display Color | 64K color | |||
| Display Contrast (Typical state) | 150:1 | |||
| Backlight Intensity (Typical state) | 300 | |||
| Wave display range | 8 x 18 div | |||
| Wave Display Mode | Point, Vector | |||
| Point, Vector | Off, 1 sec, 2 sec, 5 sec, Infinite | |||
| Menu Display | 2 sec, 5 sec, 10 sec, 20 sec, Infinite | |||
| Skin | Succinct | |||
| Screen saver | 1min, 2min, 5min, 10min,15min, 30min, 1hour, 2hour, 5hour, off | |||
| Waveform Interpolation | Sin(x)/x, Linear | |||
| Color model | Normal , Invert | |||
| Language | English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
|||
| Interface | USB Host, USB Device, RS232, Pass/Fail output | |||
|
Power Supply |
||||
| Input Voltage | 100-240 VAC, CAT II, Auto selection | |||
| Frequency Scope | 45 Hz to 440 Hz | |||
| Power | 50VA Max | |||
|
General Characteristics |
||||
| Dimension (L × W × H), mm | 399 × 110,5 × 148,5 | |||
| Weight | 2.4 kg | |||
