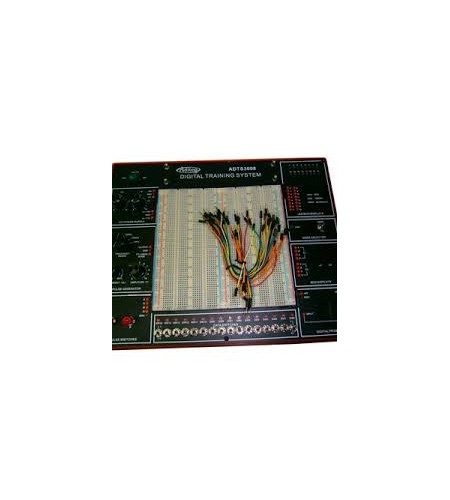

Gambar Produk
Aditeg ADTS-3008 Digital Training System
Update Terakhir
13-03-2017
Dilihat Sebanyak
20 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Aditeg ADTS-3008 Digital Training System
Aditeg ADTS-3008 Digital Training System
Features
- High level, high quality digital trainer
- Combines all essential function of digital experiment
- With removable breadboard, DC power supply, pulse generator, two pulse switches, digital probe, TTL/CMOS selector and etc.
Specification
| SOLDERLESS BREADBOARD | |
| SOLDERLESS BREADBOARD | Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).It can be changed and replaced for different purpose and canbe connected with demonstration panel. Therefore, it is very convenient for both teachers and students. |
| DC POWER SUPPLY | |
| A. Fixed DC Output | +5V, 1A |
| B. Fixed DC Output | -5V, 1A |
| C. Variable DC Output | +3V to +15V, 1A |
| D. Variable DC Output | -3V to –15V, 1A |
| MODE SELECTOR SWITCH | |
| MODE SELECTOR SWITCH | When the switch is put on “TTL” or “CMOS” position, the input or output of pulse generator, pulser switches, 8 bits data switches digital probe, 8 bit LED display will meet the HI or LO level of “TTL” or “CMOS”. |
| TWO DIGITS OF 7 SEGMENT LED DISPLAY | |
| PULSE GENERATOR | |
| Duty cycle | 50% |
| Frequency range | 1Hz ~ 10Hz
10Hz ~ 100Hz 100Hz ~ 1kHz 1kHz ~ 10kHz 10kHz ~ 100kHz 100kHz ~ 1MHz |
| Amplitude | 0 ~ 10Vpp |
| TTL/CMOS mode output | TTL: + 4V
CMOS: + VDC (depend on the + VDC output) |
| SIXTEEN BITS LED DISPLAY | |
| TWO PULSE SWITCH | |
| TWO PULSE SWITCH | A,/A,B,/B output
Output level: TTL: HI=4V LO=0.1V CMOS: HI=+VDC LO=0.1V |
| SIXTEEN DATA SWITCHES | |
| SIXTEEN DATA SWITCHES | TTL: HI=4V LO=0V
CMOS: HI=+VDC LO=0V |
| UNIVERSAL CONNECTOR FIXED HOLDER | |
| It reserves universal connector fixed holder on
the panel in order to be connected with various universal connectors, which are available |
(1) Straight header 60 pin
(2) Card edge connector 2.54mm 62pin (3) D sub25 pin connector, male & female (4) Card edge connector 3.96mm 56pin (5) Dip sockets connector 28 pin & 40 pin |
| OTHER STANDARD ACCESSORIES | (1) Power cord
(2) Pin : 10pcs (3).User manual |
| DIMENSIONS & WEIGHT | 258 x95 x 334mm(WxHxD), Approx 4.5kg |
