Fluke T5-1000 Voltage, Continuity and Current Tester
Perhatian!
Spesifikasi Fluke T5-1000 Voltage, Continuity and Current Tester

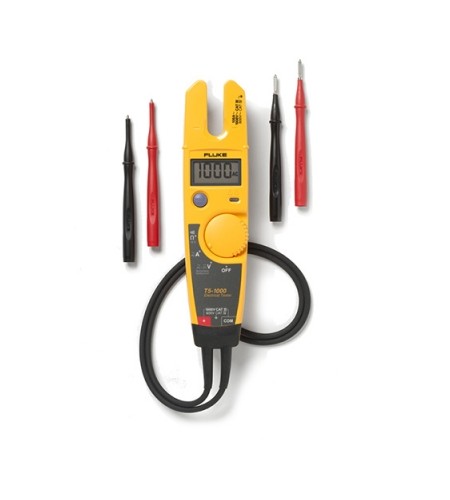

Fluke T5-1000 Voltage, Continuity and Current Tester
Overview
Electrical tester with OpenJaw™ Current
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A – without breaking the circuit. Its tough test leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt. Available in 600V and 1000V models.
Features
- Automatically measures volts ac and volts dc with precise digital resolution
- Displays resistance to 1000Ω
- Easy and accurate OpenJaw™ current measurement
- Continuity beeper
- Compact design with neat probe storage
- Rugged enough to withstand a 10-foot (3m) drop
- Detachable SlimReach™ probe tips are customized for national electrical standards
- Test leads accept Fluke accessory test clips
- Available in 600V and 1000V models
- Can stay connected much longer than solenoid type tester
- Auto off mode to conserve battery life
- Optional holster attaches to a belt and neatly stows test leads
Safety Conformance
All inputs are protected to CE, IEN61010-1 CAT III 600V.
Specifications
| Specifications | |
| Continuity Beeper | Threshold: On at <25 Ω, off at >400 Ω |
| Volts Indicator LED | Threshold: Guaranteed on by 30V ac |
| Environmental Specifications | |
| Operating Temperature | -10 °C to 50 °C |
| Storage Temperature | -30 °C to 60 °C |
| Humidity (Without Condensation) | 0% to 95% (5°C to 30°C)
0% to 75% (30°C to 40°C) 0% to 45% (40°C to 50°C) |
| Dust/Water Resistance | Yes |
| Operating Altitude | 2000 meters max |
| Temperature Coefficient | 0.1 x (specified accuracy)/degree C (<18°C or >28°C) |
| Safety Specifications | |
| Overvoltage Category | T5-600: 600V ac/dc, CAT III
T5-1000: 1000V ac/dc, CAT III 600V ac/dc, CAT IV |
| Agency Approvals | UL, CSA, and VDE |
| Maximum Voltage | between any terminal and earth ground |
| Mechanical & General Specifications | |
| Size | 30.5 x 51 x 203 mm |
| Weight | 300g |
| Warranty | 2 years |
| Battery Life | 200 hour zinc chloride, 400 hour alkaline |
| Battery Type | Two AA zinc chloride |
| Low Battery Indicator | Yes |
| Current Sensor Opening | 12.9 mm |
| Calibration Cycle | 1 year |
| Test Leads | Type: Heavy duty, flexible leads rated for 1000V use.
Field replaceable leads terminate in male shrouded banana plugs Probes: One red, one black. of two tip Detachable Slim-Reach T probe tips in one Styles: TP1 Slim Reach Test Probes |
