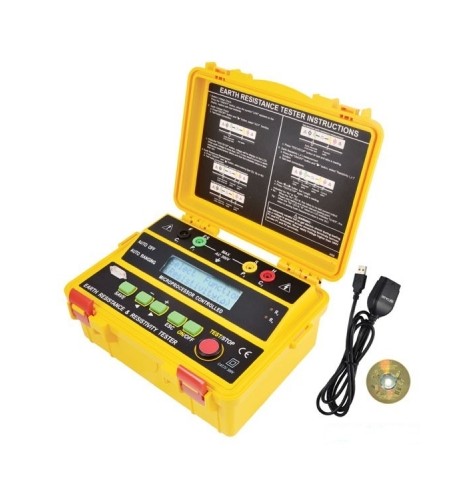

SEW 4236 ER Digital Earth Resistance Tester
Gambar Produk
SEW 4236 ER Digital Earth Resistance Tester
Update Terakhir
13-03-2017
Dilihat Sebanyak
24 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi SEW 4236 ER Digital Earth Resistance Tester
SEW 4236 ER Digital Earth Resistance Tester
Summary 4236 ER
- Instrument type: digital
- Earth Voltage Test: 0 – 300V
- Earth Resistance Test: 0 – 20Ω, 0 – 200Ω, 0 – 2kΩ
- Measuring Method: 4-wire testing
- Additional Functions: earth resistivity (ρ), C spike check, P spike check
- Additional Features: data hold mode, auto power off, low battery indication, open circuit indication, over range indication, optical USB-RS232 interface
Features
- Microprocessor-controlled
- Earth resistivity (ρ) test. Earth testing at 20Ω, 200Ω, 2kΩ
- Earth voltage measuring: 0-300V AC
- Automatic C spike check. Automatic P spike check
- 2-Wire test, 3-Wire test, 4-Wire test
- LCM display. Auto ranging. Auto power OFF
- Data hold function. 200 measurement results can be saved in the memory and recalled on the display
- Interval between auxiliary earth spikes is 1.0~50.0m
- Optical USB to RS-232 data transmission
- The stored data can be transferred to a PC
- 2 optical LEDs are built-in for data transfer
Specifications
| Measuring ranges | Earth resistance 0-20Ω / 0-200Ω / 0-2kΩ |
| Earth voltage 0-300.0V AC | |
| Earth Resistivity (ρ=2 × π × L × R) 0.06~6.28kΩ.m 0.62~62.8kΩ.m 6.28~628kΩ.m |
|
| Accuracy | Earth resistance ±2%rdg ± 3dgt Earth voltage ±2%rdg ± 3dgt |
| Earth resistance resolution | 0-20Ω : 0.01Ω 0-200Ω : 0.1Ω 0-2kΩ : 1Ω |
| Measuring system | Earth resistance by constant current inverter 820Hz approx. 2mA |
| Temperature & humidity | Operating: 0°C~40°C ≤80% R.H. Storage: -10°C~50°C ≤80% R.H. |
| Dimensions | 250(L) x 190(W) x 110(D)mm |
| Weight (battery included) | Approx. 1430g |
| Power source | 1.5V (AA) x 8 |
| Safety standard | EN 61010-1 CAT IV 300V IEC 61557-1 IEC 61557-5 EN 61326-1 |
Scope of delivery 4236 ER
- Digital Earth Resistance Tester 4236 ER
- Instruction manual
- Test leads (red-15m, black-10m, yellow-10m, green-5m)
- Auxiliary earth spikes
- Carry case
- Shoulder belt
- Batteries
- Data Transmission cable
- Compact disc (CD) for PC interface
