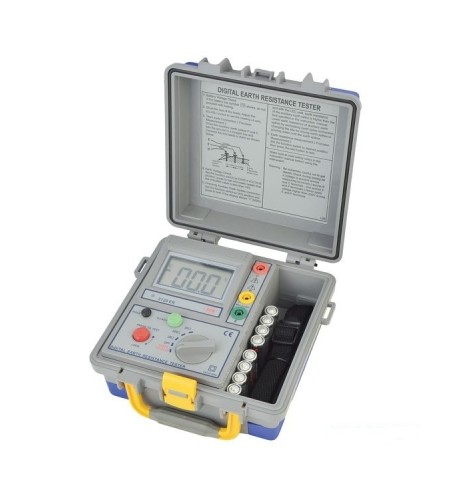

SEW 2120 ER Digital Earth Resistance Tester
Gambar Produk
SEW 2120 ER Digital Earth Resistance Tester
Update Terakhir
13-03-2017
Dilihat Sebanyak
39 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi SEW 2120 ER Digital Earth Resistance Tester
SEW 2120 ER Digital Earth Resistance Tester
Summary 2120 ER
- Instrument type: digital
- Earth Voltage Test: 0 – 200V
- Earth Resistance Test: 0 – 20Ω, 0 – 200Ω, 0 – 2kΩ
- Measuring Method: 3-wire testing
- Additional Features: data hold mode, 0Ω adjustment function, low battery indication, open circuit indication, over range indication
Features
- Capable of measuring earth resistance and earth voltage
- 2mA measuring current permits the testing of earth resistance without tripping earth leakage current breakers in the circuit under test
- The leads are supplied as standard accessories for simplified two-wire measuring system
- 0Ω adjustment function. Data hold function
- Battery operated.Low battery indication
- Calibration performed with supplied test leads
Specifications
| Measuring ranges | Earth resistance 0-20Ω / 0-200Ω / 0-2000Ω |
| Earth voltage 0-200 Vac(40-500Hz) | |
| Accuracy | Earth resistance ±(2%rdg+2dgt) or ±0.1Ω, which is greater Earth voltage ±(1%rdg+2dgt) |
| Earth resistance resolution | 0-20Ω : 0.01Ω 0-200Ω : 0.1Ω 0-2000Ω : 1Ω |
| Measuring system | Earth Resistance by constant current inverter 820Hz approx. 2mA. |
| Display | 3½ digit (2000 counts) |
| 0Ω adjustment function | + |
| Open circuit indication | LED will be unlit |
| Low battery indication | + |
| Data hold indication | + |
| Over range Indication | “1”(MSD) |
| Dimensions | 210(L) x 210(W) x 100(D)mm |
| Weight (battery included) | Approx. 1395g |
| Power source | 1.5V (AA) × 8 |
| Safety standard | IEC/EN 61010-1 CAT III 200V IEC 61557-1 IEC 61557-5 EN 61326-1 |
Scope of delivery 2120 ER
- Digital Earth Resistance Tester 2120 ER
- Instruction manual
- Test leads(red-15m, yellow-10m, green-5m)
- Auxiliary earth spikes
- Simplified measurement probe
- Carry case
- Batteries
