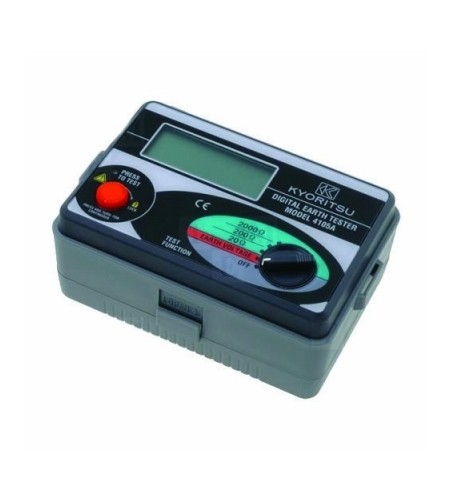

Kyoritsu 4105A Earth Tester (Soft Case Model)
Gambar Produk
Kyoritsu 4105A Earth Tester (Soft Case Model)
Update Terakhir
13-03-2017
Dilihat Sebanyak
34 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi Kyoritsu 4105A Earth Tester (Soft Case Model)
Kyoritsu 4105A Earth Tester (Soft Case Model)
- Dust and drip proof.(designed to IEC 529 IP54)
- In addition to the facility for precision measurement, test leads for simplified two wire easuring system also supplied as standard accessories.
(unit can be hung from the neck for simplified measurement)
- Designed to meet IEC 61010-1 safety standard.
- Capable of measuring earth voltage.
- Automatic warning when resistance of auxiliary earth spikes is in excess of tolerance.
- Small and lightweight. Shock resistant new case material.
- 2mA measuring current permits earth resistance tests without tripping earth leakage current breakers in the circuit under test.
|
Measurement ranges |
Earth Resistance: 0 – 20Ω/0 – 200Ω/0 – 2000Ω Earth Voltage [50,60Hz]: 0 – 200V AC |
|
Accuracy |
Earth Resistance: ±2%rdg±0.1Ω (20Ωrange) ±2%rdg±3dgt (200Ω/2000Ωrange) Earth Voltage: ±1%rdg±4dgt |
|
Overload protection |
Earth Resistance: 280V AC for 10 seconds across 2 of the 3 terminals Earth Voltage: 300V AC for 1 minute |
|
Applicable standards |
IEC 60529 IP54 |
|
Safety Standard |
IEC 61010-1 CAT III 300V Pollution Degree 2, IEC 61557 |
|
Power source |
R6 (AA) (1.5V) × 6 |
|
Dimensions |
105(L) × 158(W) × 70(D)mm |
|
Weight |
550g approx. |
|
Included Accessories |
7095A (Earth resistance test leads) × 1set (red-20m, yellow-10m, green-5m) 8032 (Auxiliary earth spikes) × 1set 7127A (Simplified measurement probe) × 1set R6 (AA) × 6 Neck strap Instruction Manual Carrying case : 9084(Carrying case[Soft]:4105A onry) : 9165(Carrying case[Hard]:4105A-H onry) |
|
Optional Accessories |
7100A (Precision measurement cord set) |
