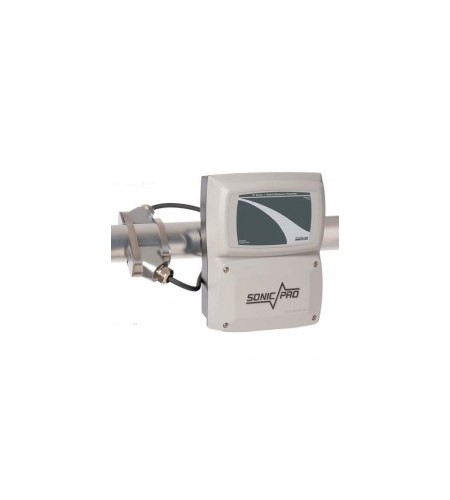

Ultrasonic Flow Meter Hybrid Blue White Sonic-Pro S2  Doppler and Transit Time With Two Button Display

Description

Features:

• Selectable Doppler or Transit Time operating mode.
• Custom quality metric algorithms and DSP technology ensures reliable, high accuracy measurements.
• Quick and easy clamp-on transducer installation. Proprietary AGC (Automatic Gain Control) algorithm eliminates manual gain adjustment.
• Tamper Resistant 2-button user interface.
• Factory configured for easy installation.
• High quality 320 x 240 pixel QVGA backlit LCD.
• Data logging to standard SD Card format. Factory configured to three minute time interval triggers. Logs time, date, flow rate and total flow values. 500,000 events with included 32MB SD Card.
• Isolated 4-20 mA output – factory configured.
• 0 – 1000Hz Pulse output – factory configured.
• Optional – Computer connection via RS-232, RS-485, USB, Ethernet. Permits remote access and control of all functions including real-time display, system configuration, data logging, remote data capture and process control functions. Software permits remote internet access through local network set-up.

Applications:

• Sewage
• Wastewater
• Pulp & Paper Slurries
• DI water
• Discharge water
• Caustics
• Chemical Slurries
• Ground water
• Food and Beverage
• Petrochemical
• Any sound conducting liquid

Performance Specifications:

• Fluid velocity range shall be from 0.25 to 30 feet per second.
• Nominal pipe sizes shall be from 2.0 inch to 100 inch.
• Transit time accuracy shall be +/-1% of rate > 1fps, +/- 0.01 fps < 1fps
• Doppler accuracy shall be +/-2% of rate > 12fps, +/- 0.25 fps < 12fps
• Operate on any input power from 110 to 250VAC, or 15 to 30 VDC without pre-configuration.
• Flow sensitivity shall be to 0.001 feet per second (0.0003 meters per second).
• Display response time shall be user configurable for 0.25, 0.50, 1.0, 2.5, or 5.0 seconds.
• Flow rate averaging time shall be user configurable for 0.50, 1.0, 2.5, 5.0, or 10.0 seconds.

Signal Processing Unit (SPU)

• Enclosure shall be polyester powder coated aluminum rated NEMA 4X (IP66).
• Enclosure shall include all hardware required for mounting to a pipe, wall, or panel.
• Continuous operation at temperatures from 14o F to 140o F (-10o C to 60o C).
• Display shall be a QVGA backlit LCD and continuously display flow rate and total flow to 10 digits plus exponent to E+32.
• Display shall indicate currently active operating technology, currently active configuration number, transducer separation distance, 4 bar measurement reliability index, measured fluid sound speed, and process control relay status.
• Two button touch pad shall permit the user to reset the accumulated total value and to swap the rate/total display fonts. The configuration menus shall not be accessible from the front panel.
• Display languages of English, Spanish, French and German shall be user selectable.
• Five pre-set pipe configurations may be user configured.
• Automatic gain control shall adjust the signal strength. User adjustable signal strength shall not be required.

Includes: Hard sided case; the Ultrasonic Flowmeter; a CD with instructional manuals in English, Spanish, French and German; all necessary transducer and enclosure mounting hardware; two sets of transducer acoustic mounting gaskets, one for temporary installations and one for permanent installations.

Specifications:

General Operations:
Measuring Principle

• Hybrid. User-selectable Doppler or Transit Time operating modes.

Fluid Types

• Virtually any acoustically conductive fluid.
• Transit time mode operation from 0% to 1% (0 to 10,000 ppm) particulate.
• Doppler mode operation from 0.02% to 15% (200 to 150,000 ppm) of 100 micron particulate.

Nominal Pipe Sizes

• 0.5 inch – 12.0 inch (20mm to 315mm)

Pipe Materials

• Most metal and plastic pipes

Pipe Liner Materials

• Most plastic liners

Fluid Velocity Range

• 0 to 30 f/s (0 to 9 m/s)

Electronic:

Enclosure

• NEMA 4X (IP66), Powder coated aluminum, SS clamps and hardware.
• Dimensions: 11.00H x 8.60W x 5.00D inches (279H x 218W x 127D mm)
• Weight 9.5 lb. (4.3 Kg.)

Mounting

• Wall, pipe (vertical or horizontal) or panel mounting. Hardware included.
• Panel opening: 10.63H x 8.10W inches ( 270H x 206W mm)
• Panel Depth. Rear: 2.78 inches (71 mm), Front : 2.18 inches (55 mm)

Power Requirements

• 95-264 VAC 50/60Hz or 15-30 VDC; 30 watts maximum

Operating Temperature

• 14 F to 140 F (-10 C to 60)

Storage Temperature

• -40 ºF to 158º F (-40º C to 70º C)

Display

• 320 x 240 pixel QVGA backlit LCD, UV resistant. Simultaneous Rate and Total: 10 digit maximum + exponent to E+32 Decimal point factory configured.

• English, Spanish, French or German factory configured.

Keypad

• Two-button positive action tactile switch keypad.

Display Volume Units

• Factory configured Rate and Total display units in: U.S. Gallons, ounces, barrels (US liquid), barrels (US oil), cubic feet, acre feet, Imperial (British) gallons, liter, cubic meter, or user defined “custom” units.
• Rate display in feet or meters per second.

Display Time Units

• Factory configured for seconds, minutes, hours, days.

Display/Output update Time

• Factory configured for 1.0 seconds

Flow Rate Display Averaging

• Factory configured for 5.0 seconds.

Data Outputs

•  Isolated 4-20 mA output – factory scaled at 0-30 fps
•  0-1000 Hz Pulse output – factory scaled at 0-30 fps

Data Logging

• Date/time stamped flow rate and total data in FAT32 file format, easily imported into Excel. Factory configured to trigger at 3 minute time intervals. Over 30,000 events with included 32MB SD Card.

External Communications – optional

• Computer connection via RS-232, RS485, USB, Ethernet.  Includes user communication and complete configuration software
• Permits remote internet access through local network set-up
• Remotely access and upload data logging files.

Clamp-On Transducers
Housing

• NEMA 4X (IP66), Powder coated aluminum, stainless steel mounting clamps and hardware.
• Dimensions: 3.12H x 2.95W x 1.60D inches (79H x 75W x 41D mm)
• Weight: 0.8 lb. (0.4 kg.) each

Cable

• Shielded coaxial RG/U Type:59. PVC jacket, black. RoHS Compliant.
• Standard length: 10 ft. (3m)
• Optional lengths available: 25 ft. (7m), 50 ft. (15m), 100 ft. (30m)

Nominal Pipe Sizes

• A series transducer: 0.5 inch – 2.0 inch (20mm to 63mm)
• B series transducer: 2.0 inch – 12.0 inch (63mm to 300mm)

Pipe Surface Temperature

• 14º F to 212 ºF (-10º C to 100º C)
