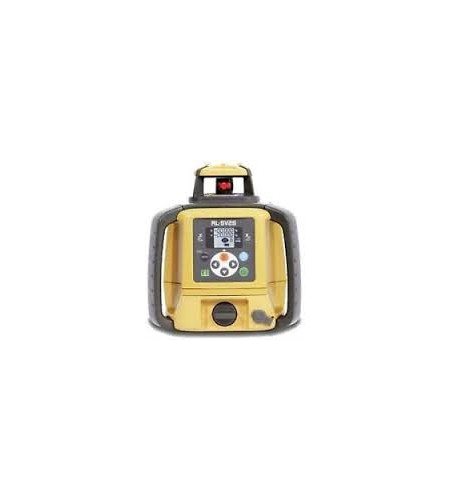

Rotating Laser Topcon RL-SV2S
Perhatian!
Spesifikasi Rotating Laser Topcon RL-SV2S
With an operating range of up to 2,600 feet, the Topcon RL-SV2S is a self-leveling laser with dual grade capability. Designed for multiple types of tasks, it can be used for horizontal, sloping and vertical laser applications. This rotary laser includes an LS-80L laser receiver for outdoor measurements and NiHM Rechargeable Battery pack for operations up to 65 hours.
The RLSV2S slopes up to +/- 5 degrees in either the horizontal or vertical axis. This means you can turn it on its side and use it for layout and alignment jobs or attach it to a 5/8-11 tripod thread.
Topcon LS-80L Laser Detector
The LS-80L laser receiver allows a single crew member to quickly and accurately finish a range of jobs from leveling to concrete finishing. By securely attaching to a range pole using the Topcon Sensor Holder 6 bracket, this device features a large digital readout and an audible tone which gives leveling, out of range and low battery indications.
This laser detector communicates with the Topcon RL-SV2S, giving you height alert warnings reducing potential errors and rework. The LS-80L also has segmented arrows giving millimeter settings of 5mm, 10mm and 15mm individual levels of grade, an auto shut off after 30 minutes and a fine accuracy of 1mm. Water and dust resistant, it works up to 80 hours on a single charge.
Remote Control Additional Features
The RL-SV2S includes an RC60 radio remote control with a backlit graphic display for full control of the laser from up to 328 feet away. It also has selectable rotation speed and masking mode allows you to turn the laser beam off electronically to eliminate interference with other crews.
With an IP66 rating, this grade laser is protected against dust and water jets from any angle. It has a graphic LCD display and keyboard that shows all functions at a glance and works up to 65 hours using rechargeable NiMH batteries. You also have the option for alkaline dry batteries at the upper right hand corner of the page.
Includes:
Topcon RL-SV2S dual grade laser 313660702
RC-60 remote control
LS-80L laser receiver 313540702
Sensor holder 6 312890112
Hard carry case
Rechargeable NiMH batterries
Battery charger
User manual
Specifications: Laser: Color: Red. Wavelength: 635 nm. Classification: Class 3R. Direction: Horizontal/Vertical. Visibility: Visible. Range: Exterior: 2,624 ft (800 m). Self Leveling: ± 5°. Remote: 328 ft. Battery/Power: Battery Life with Rechargeable Battery Pack: 65 hours. Battery Life with Alkaline Batteries: 120 hours. Power Source: Rechargeable NiMH or alkaline batteries. Battery Life Alert: yes. Features: Display: Backlit, graphic LCD.Bump Sensor (H.I./Out of Position Alert): yes. Protection Class: IP66 (dustproof and water jet protected). Tripod Adapter (Center Screw Thread): 5/8-11 horizontal and vertical. Dual Handles: yes. Adjustable Rotating Speed: 300, 600 rpm. General: Weight: 5.95 lbs (2.7 kg). Dimensions: 7.0 × 7.7 × 8.5 in (17.7 × 19.6 × 21.7 cm). Warranty: 5-year. Remote Control Operating Distance: 328 ft. Extra Technology: Remote Control: RC-60. Detector/Reciever: LS-80L. Accuracy: Horizontal: 1/16″ at 100 ft (±1.5 mm at 30 m). Temperature: Storage: -22 °F to +140 °F (-30 °C to +60 °C). Operating: -4°F to +122°F (-20 °C to +50 °C). Charger: Charging Time: 13 hours. Functions: Grade Operation: Automatic. Automatic Leveling: yes. Beam Operating Modes: Beam masking. Grade: Type: Dual. Percentage: ± 15%.
