Modern, eronomic housing: Dust-proof and splash-proof to IP54. |
|
Large glass lens: With optimal emergence angle. Ensures remarkable visibility and extent of the laser lines. |
|
Very easy to use: With only two buttons the Leica LINO™ L2 is intuitive to operate. |

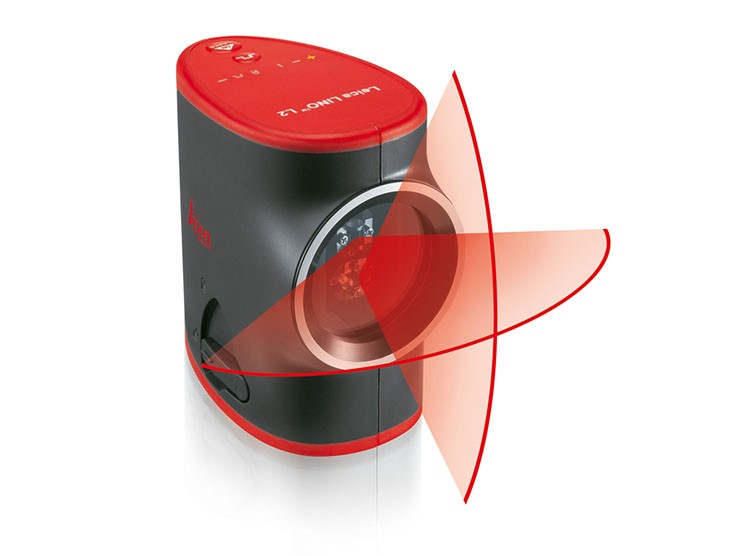

With your Leica LINO™ L2 everything will be straight
The quality of the optics is crucial for the remarkable visibility and high accuracy of the lines projected. This quality and Power Range Technology™ are key features of the Leica LINO L2.
No more time-consuming drawing lines on the wall!
The Leica LINO™ L2 automatically compensates for minor angular misalignments over a range of ± 4°. Whether horizontal, vertical or crossed – the red lines are perfectly visible everywhere on the wall.
Pulse function with power-saving mode:
Essential for applications outdoors with detector (accessory) and projections over longer distances.
Modern, ergonomic housing:
Dust-proof and splash-proof to IP54.
Lock function:
Lock for projecting at an angle and transport protection.
Very easy to use:
With only two buttons the Leica LINO™ L2 is intuitive to operate.
Large glass lens:
With optimal emergence angle. Ensures remarkable visibility and extent of the laser lines.
lock laser at any angle with pivot mount |
easy setup – no more need for chalk lines |
check horizontal, vertical and square with one tool |
fast set up – transfer points around the room |
perfect alignment tool | no more time consuming drawing lines on the wall | ||
Easy & intuitive to operate | pulse function – for use with laser detector | ||
revolutionary pocket size combined with convenient shape | dust-proof & splash proof to IP54 | ||
lock function – switch of self levelling function | self levelling | ||
large lens for optimal emergence angle | accurate to ± 1mm@5m | ||
foil keypad | easy to use – manual not required |
technical data | |||
range | measurements up to 15m (dependent on light) 30m with detector | oper. temp | -10ºC to 40ºC |
levelling accuracy | ±1.0mm @ 5m | protection | (IP54) splash & dust proff |
horizontal accuracy | ±1.0mm @ 5m | battery type | AA, 3 x 1.5V |
vertical accuracy | ±0.75mm @ 3m line length @ 5m | size (HxDxW) | 96x91x54 |
laser type | 635nm , laser class II | weight | 320g |
protective pouch |
LINO L2 |
target plate |
multi-functional adapter / tripod & ball adapter |

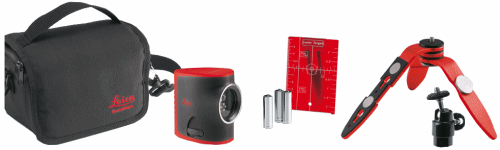

your shipment will include:
1 no. Leica DISTO LINO L2
1 no. Protective Pouch
1 no. Target Plate
1 no. Magnetic Multifunction Adapter / Mini Tripod
1 no. Ball adapter – for Projection At Any Angle
3 no. AA Batteries
1 no. Instruction Sheet
