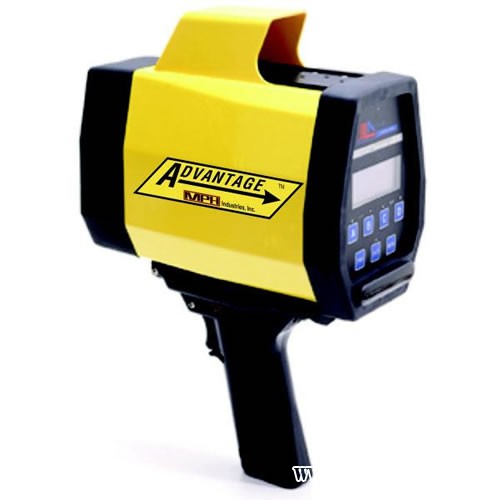

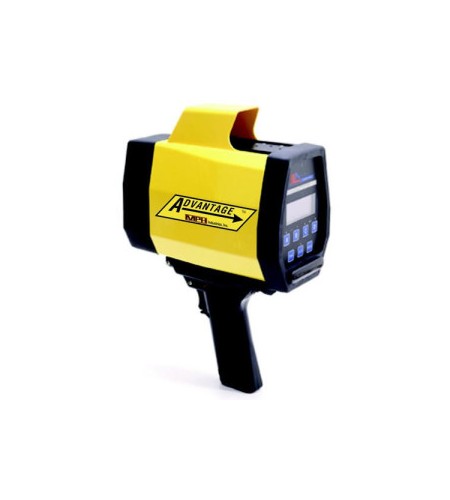

Laser Atlanta 3RC1 Advantage R Range Finder
Description :
The Laser Atlanta Advantage R Range Finder is a great tool for land surveyors and engineers. This rangefinder is very easy to operate, a single person can take measurements or it can be used with a reflector to reach longer ranges. The Advantage R rangefinder can take measurements of distances, missing lines, angles and even horizontal distances and heights and you can transfer all your data via serial port RS232 to your preferred device.
The Advantage R Laser Rangefinder can reach up to 30,000 ft using a reflective device or up to 2,000 ft for direct measurements with an accuracy up to ½ a foot. This laser surveying tool features a head-up LED display with aiming sights and a rear LCD screen with a keypad to display all the results. All your calculations can be shown in meters or feet.
The Laser Atlanta Advantage R Rangefinder comes with a built-in compass and inclinometer. The inclinometer has a 50 degrees range from the level with an accuracy of +/-0.4 degrees. This Laser Atlanta rangefinder model features internal functions that allow you to take a wide variety of measurements: distances between poles, areas, remote vertical and horizontal distances, height of towers or buildings and even lengths and diameters.
The Advantage R Laser Rangefinder can be used with a GPS for GIS and GPS mapping. This surveying tool is compatible with most GPS devices. This feature can be operated by just a single person to generate data for field surveying and it allows you to collect inaccessible points easily.
The Advantage R rangefinder weights only 4.8 pounds and it comes in yellow. It’s water and dust resistant and uses rechargeable battery handles that last for 4 to 6 hours of continuous use.
The Laser Atlanta Advantage R Range Finder is heavy-duty designed and protected with rubber bumpers for longer durability, it’s a very strong tool and it comes with a 1 year warranty.
Features:
- Up to 0.5 foot distance accuracy
- Up to 0.4 degrees angle accuracy
- Feet and meters
- Degrees
- Head-up LED display
- Keypad with LCD display
- Invisible laser
- 2,000 ft distance measuring range
- 30,000 ft distance measuring range to prism
- Compass and inclinometer
- Compatible with GPS systems
- Comes in yellow
- Measures distance, horizontal distance and angles
- 2-shot height and missing line
- Power: battery handles
- Data transfer via serial port RS232
- Tripod adaptable
- Rubber bumpers
- Heavy duty design
- Water and dust resistant
- Weights 4.7 pounds
Specifications:
- Long Range Capatilities: Range – 2,000 ft. (600m) passive / 30,000 ft. (9,100m) to prism; Range accuracy – =/- 6 inc. (15cm) / 3 sigma (99.73%)
- Dimensions: 4.5w x 7.5h x 8.4d inches
- Weight: 4.8 pounds with battery handle
- Operating temperature: -22F to 140F (-30C to 60C)
- Storage temperature: -40F to 176F (-40C to 80C)
- Humidity: 99% non-condensing
- Environmental: Water and dust resistant
- Head-Up Display: LED aiming sights and 1 line x 4 character readout
- Rear panel display: 4 line x 20 character LCD, backlit
- Data transfer: RS-232 serial port / optional memory port for SD & USB
- Power source: Rechargeable battery handles. (Nickel Metal Hydride)
- Recharge time: Standard 8 – 10 hours
- Measurement time: 0.33 seconds minimum
- Range: 2,000 st. (600m) passive / 30,000 ft. (9,100m) to prism
- Range accuracy: +/- 6 in. (15cm) / 3 sigma (or 99.73%)
- Resolution inclinometer: 0.1 ft. (1cm)
- Inclinometer type: Triaxial magnetometer
- Inclinometer range: +/- 50 degrees from level
- Inclinometer accuracy: +/- 0.4 degrees
- Inclinometer resolution: 0.1 degrees
- Inclinometer repeatability: +/- 0.3 degrees
- Compass type: digital
- Compass range: 0.0 degrees to 359.9 degrees
- Compass accuracy: +/- 1 degrees RMS when level
- Compass resolution: 0.1 degrees
- Compass repeatability: +/- 0.3 degrees
What’s in the Box:
- (1) Laser Atlanta 3RC1 Advantage R Range Finder
- (1) Tripod mountable battery handle
- (1) Soft carrying case
- (1) Standard 120AC charger
- (1) User manual
- (1) 1-year warranty
