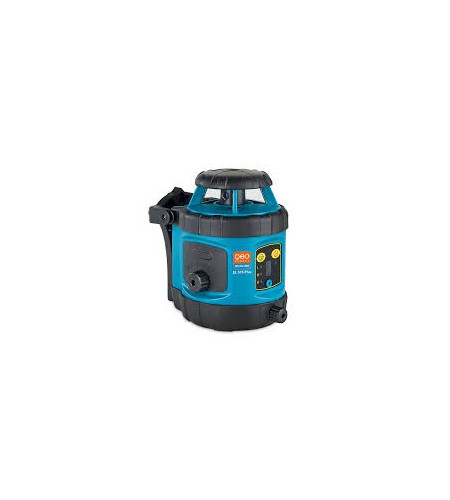

Rotating Laser Ecoline EL 515 Plus
Perhatian!
Spesifikasi Rotating Laser Ecoline EL 515 Plus
Detail Produk Rotating Laser Ecoline EL 515 Plus
EL 515 Plus Set
Fully automatic rotating laser
Aligned to your needs.
Ready to use and fully equipped for many applications: Either the elevating tripod or the wall mount can be used, depending on the situation. Target plate and laser glasses for improved visibility of the laser beam. Receiver and handy levelling staff for determining height differences. With rechargeable battery and charger, and the option of operating the device with alkaline batteries.
Features :
*Instant self-levelling
*Horizontal self-levelling rotating laser; vertical levelling with one footscrew
*Automatic shut-off and audible alarm when out of self-levelling range
*Variable rotating speed
*Permanent 90° beam to zenith
*Rechargeable NiMH batteries with intelligent charger
*Integrated floor/wall mount with adjustment screw
Include :
* Receiver
* Baatery
* Charger
* Tas
* Tripod
Technical Data
| Self-levelling range | ± 3° |
| Accuracy | ± 1,5 mm / 10 m |
| Working range without receiver Ø | 30 m* |
| Working range with receiver Ø | 400 m |
| Rotating speed (rpm) | 200, 400, 600 |
| Power supply | NiMH |
| Operating time | 20 h |
| Dust/water protection | IP 54 |
| Laser diode / class | 635 nm / 2 |
| Temperature range | -10°C to +45°C |
| Weight (instrument with battery) | 1,5 kg |
