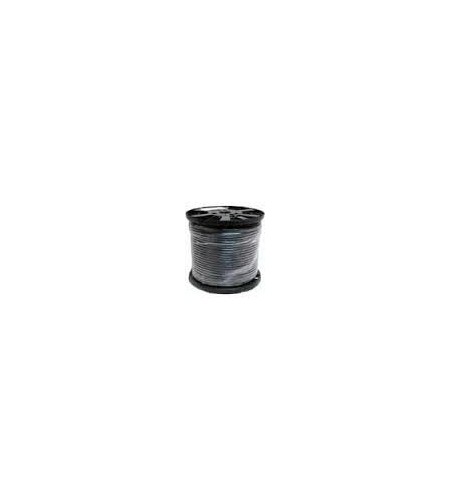

Kabel RG-58 Belden 8219 – 50 Ohm
Cable RG-58 Belden 8219 – 50 Ohm
The Belden 8219 RG58/ A/ U coaxial cable ( black) features a 96 percent braided shield to prevent RF loss. This 50 Ohm coax cable has a stranded center conductor. The RG58 cable also has a foam polyethylene dielectric. The black braided coax cable transmission line is MSHA approved.
The Belden RG58A/ U is available in bulk and is priced per foot.
Specification:
• Coaxial Cable Type : RG58
• Conductor Material : Tinned Copper
• Conductor Size AWG : 20 AWG
• External Diameter : 4.93 mm
• Impedance : 53.5 ohm
• Jacket Color: Black
• Jacket Material : PVC ( Polyvinyl Chloride)
• No. of Strands x Strand Size : 19 x 32AWG
• Reel Length ( Imperial) : 500 ft
• Reel Length ( Metric) : 152.4 m
• SVHC : No SVHC ( 20-Jun-2013)
