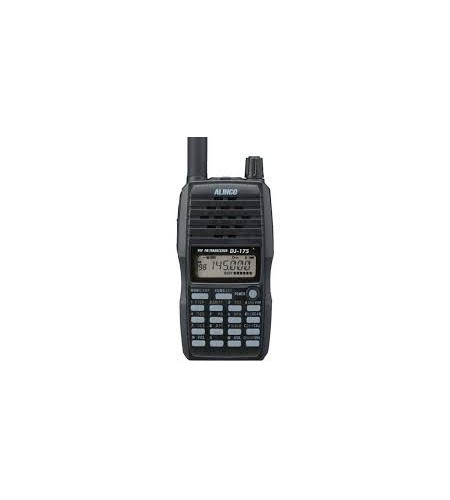

HT Alinco DJ 175T
Perhatian!
Spesifikasi HT Alinco DJ 175T
Specifications – HT Alinco DJ 175T :
Frequency Coverage: TX: 144 – 147.995 MHz
RX: 136 – 173.995 MHz
Signal Type: F3E [FM]
Receiver System: Double Conversion Super-heterodyne
Channel Step: 5, 10, 12.5, 15, 20, 25, 30 kHz.
Memory Channels: 200 memory channels+ 1 call channel
Tone Encoder: 39 tone encoder standard
Deviation: ± 5 kHz
TX Output: 5/2/0.5 Watts
TX Spurious emissions: Not more than -60dB
Frequency Stability: ± 5 ppm (-10 to +50° C.)
Sensitivity: Better than -15 dBu (12dB SINAD) at 145 MHz
Selectivity: ± 6 kHz -6dB
I.F.: 1st = 21.7 MHz, 2nd = 450 kHz
Power Supply Requirements: 7.2VDC via battery only
Current Consumption: TX: 1500 mA, RX: 250 mA, Standby 70, Batt Save: 30mA
Antenna Jack: SMA
Size: 2.28 x 4.23 x 1.43 inches 8.7 oz without projections
