Spesifikasi HT Icom IC U88, V88

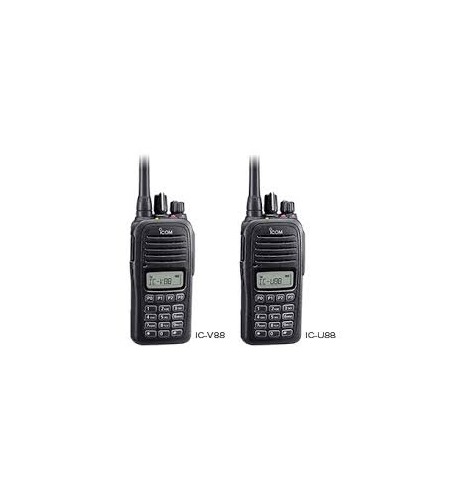

ICOM IC-U88 Compact, Waterproof Professional Radio
* IP67 Waterproof and Dust-tight Protection
* 800mW Clear Companded Audio with Large 36mm Speaker
* Powerful 5.5W of Output Power
* 10.5 Hours of Operating Time with Supplied Waterproof Battery
* 128 Memory Channels
* 8 Character Alphanumeric Display
* Built-in CTCSS and DTCS encoder/ decoder
* 8 DTMF Autodial Memories
* MDC 1200 PTT ID and 100 Alias Memories
* Inversion Voice Scrambler ( 16 Code) for Private Conversation
* Channel Announcement of the Operating Channel Number
* Seven Programmable Buttons with Shift Key Function
Complete With :
* Desktop Charger
* Antena
* Battery
* Belt Clip
* Manual Book
Compact, Waterproof Professional Radio
General
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Frequency coverage |
136MHz–174MHz
|
335MHz–380MHz
|
|
| Type of emission |
16K0F3E, 11K0F3E (25/12.5kHz)
|
||
| Number of channels |
128 channels
|
||
| Antenna impedance |
50Ω
|
||
| Power supply requirement |
7.5V DC
|
||
| Operating temperature range |
−30°C to +60°C (Radio only)
|
||
| Frequency stability |
±2.5ppm
|
||
| Current drain (approx.) |
Tx High | 1.5A | 1.3A |
| Rx Max. audio/Stand-by |
330mA
(Internal SP) /77mA |
300mA
(Internal SP)/80mA |
|
| Dimensions (W×H×D) (Projections not included) |
52.2×111.8×22.3 mm (with BP-278)
|
||
| Weight |
230g (with BP-278)
|
||
Transmitter
IC-V88 |
IC-U88 |
|
|---|---|---|
| Output power (at 7.5V) |
5.5/2.0/0.5W
(Hi/L2/L1) |
4.0W/2.0W/1.0W
(Hi/L2/L1) |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow)
|
|
| Spurious emissions |
70dB min.
|
|
| Ext. microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ
|
|
Receiver
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Sensitivity |
0.25μV typ. (at 12dB SINAD)
|
||
| Squelch sensitivity |
0.25μV typ. (at threshold)
|
||
| Adjacent channel selectivity |
76dB/53dB typ.
(Wide/Narrow) |
73dB/56dB typ.
(Wide/Narrow) |
|
| Intermodulation |
74dB typ.
|
73dB typ.
|
|
| Spurious response |
70dB min.
|
||
| Audio output power | Internal SP |
800mW typ. (12Ω load)
|
|
| External SP |
400mW typ. (8Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
