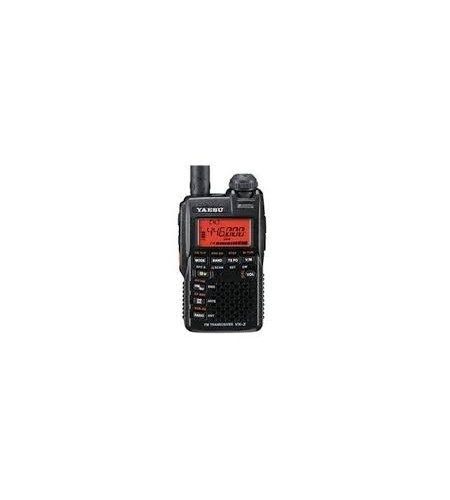

HT Yaesu VX 3R

See “Specifications” under the “Files” tab at the top of the VX-3R Main Page.

Ultra-compact and Light Weight

1.9″ X 3.2″ X .9″
4.6 ounces

Rugged Construction

Tough where it counts – Aluminum Die-Cast Chassis

Plenty of Power Output in a Compact Package

1.5 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
3 W (@ 6 V or EXT DC 144 MHz)
1 W (@4.5 V AA x 3 or 3.7 V FNB-82LI 430 MHz)
2 W (@ 6 V or EXT DC 430 MHz)

Low 0.1 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI)
Low 0.3 W (@ 6 V or EXT DC)

Supplied with Tiny Super-thin, Lithium-ion High-Capacity Battery and Charger

Long life in a quality battery for extended usage

Operate with AA Batteries with Optional Battery Case

Requires Optional FBA-37 Battery Case. When traditional local power service is not available to power your battery charger, this feature insures continued operation using readily available “AA” batteries.

Internal Bar Antenna for AM Broadcast Band Reception

Improved AM Broadcast Band reception for your entertainment

Designated Earphone Jack for FM Stereo Broadcast Listening

Makes the VX-3R a useful receiver far beyond it’s Amateur Radio applications

Listen to AM or FM Broadcast while Monitoring an Amateur Frequency

Sub RX feature allows you to listen to your favorite AM or FM Stereo Broadcast station while monitoring an Amateur Radio frequency…AT THE SAME TIME!

Wide-band Receiver Coverage

Extremely wide receiver coverage – see “Specifications”

Special Memory Banks – WX, VHF Marine, Shortwave Broadcast

The VX-3R has special memory bands programmed with WX broadcast, VHF Marine, and world-wide short-wave broadcast stations

Huge 1000-channel Memory Capacity

Plenty of memory space for ALL of your favorite frequencies

New Mechanical Dial Lock Function

No more “bumps” off your desired channel – lock it and keep it.

Equipped for Worldwide Internet Linking

Talk Around the World using Yaesu WIRES II Internet Linking!

Go to the Yaesu website front page, www.yaesu.com , click on “Products”, and then click on “WIRES” for more information on this exciting communications opportunity

CW Learning and Training Feature

CW (Morse Code) licensing requirements have been removed by the FCC. However, all of those HF, VHF, and UHF Morse code designated frequencies are still there with loads of weak signal DX just waiting for you. Consider learning the Morse code – we will help you experience the excitment of working the World on CW with our VX-3R CW Learning and Training feature
