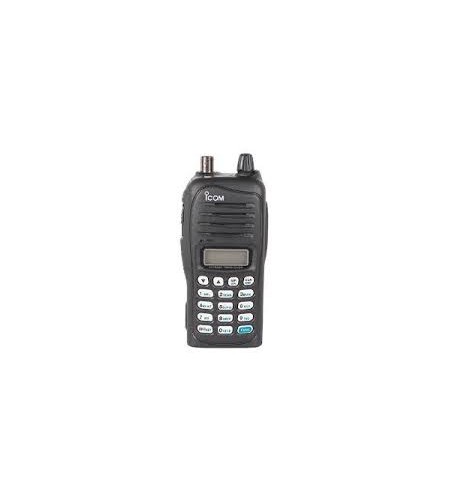

HT Air Band Icom IC A14
Perhatian!
Spesifikasi HT Air Band Icom IC A14
Made with the student pilot in mind
The IC-A14 series is the ideal flight companion for the student pilot. This radio practically pays for itself by saving pilots both engine hours and fuel during preflight communications with the tower.
700mW* loud audio
Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio thatll cut through cabin or tarmac noise.
* Internal speaker only
Full keypad type or Simple keypad type
The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-14 receives NOAA WX channels when selected. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.
Compact, light weight and rugged body
The IC-A14 series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions.
Large capacity Lithium-Ion battery pack
With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14 series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.
200 channels with memory banks
A total of 200* memory channels can be named with an 8-character channel name for easy recognition. For fast and simple operation, these channels can be grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and memory banks are not available.
BC-179 holder type battery charger
The battery charger, BC-179, securely holds and charges the radio, even in bumpy conditions. The cigarette lighter cable, CP-22, can be used with the BC-179.
Other outstanding features
- 5W typ. (PEP), 1.5W (CW) output power
- Side tone function allows you to hear your own voice via a third party aviation headset
- LCD backlight for night time operation
- ANL (Auto Noise Limiter) for noise reduction
- Low battery indication and beep alert
- Adjustable microphone gain setting
- BNC type antenna connector
Specifications
| General | |
|---|---|
| Frequency Coverage IC-A14 Tx (COM) Rx (COM, NAV) Rx (Weather) IC-A14S Tx/Rx (COM) |
118.000-136.975 MHz 108.000-136.975 MHz 161.650-163.275 MHz118.000-136.975 MHz |
| Mode Weather (IC-A14 only) |
AM (6K00A3E) FM (16K0G3E) |
| Channel spacing | 25 kHz |
| No. of memory channels IC-A14 IC-A14S |
200 channels with 10 banks 100 channels |
| Antenna impedance | 50Ω (BNC type) |
| Power supply requirement | 7.4V DC (Icom battery pack) |
| Current drain (at 7.2 V DC) Tx Rx Max. audio Rx Stand-by |
1.5 A typical 500 mA typical 50 mA typical |
| Operating Temperature Range | -10°C to +60°C; -14°F to +140°F |
| Dimensions (W×H×D) (projections not included) |
53×120×36.9 mm; 23⁄32×423⁄32×17⁄16 in. |
| Weight (approx.) | 350 g; 12.3 oz (with antenna and BP-232N) |
| Transmitter | |
|---|---|
| Output power (at 7.2 V DC) | 5.0/1.5W typ. (PEP/CW) |
| Modulation limiting | 70-100% |
| Frequency stability | ±5ppm |
| Audio harmonic distortion | Less than 10% (at 60% mod.) |
| Hum and noise ratio | More than 35 dB |
| Spurious emissions | More than 46 dB (except operating freq. ±62.5 kHz point) |
| Microphone impedance | 3-conductor 2.5 (d) mm (1⁄10″) / more than 100kΩ |
| Receiver | |
|---|---|
| Intermediate frequency 1st 2nd |
46.35 MHz 450 kHz |
| Sensitivity (typ) COM (at 6dB S/N) NAV (at 6dB S/N) WX (at 12dB SINAD) |
-6dBµ typ. -3dBµ (IC-A14 only) -13dBµ (IC-A14 only) |
| Squelch AM FM |
Less than 0dBµ less than -5dBµ |
| Selectivity | More than 7.5 kHz/-6 dB Less than 25 kHz/-60 dB |
| Hum and noise | More than 35 dB (at 30% mod.) |
| Spurious response AM FM (IC-A14 only) |
More than 60 dB More than 30 dB |
| Audio output power Internal speaker External speaker |
More than 700mW More than 500mW at 10% distortion with an 8Ω load, 30% modulation |
| Ext. speaker connector | 3-conductor 3.5 (d) mm, (1⁄8″) / 8Ω |
