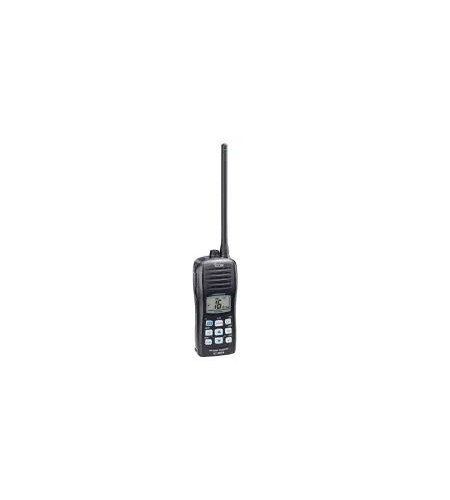

HT Icom IC-M34 VHF Marine Transceiver
Perhatian!
Spesifikasi HT Icom IC-M34 VHF Marine Transceiver
AquaQuake draining function
The vibrating “buzz” sound clears water away from the speaker grill.
Easy to see LCD with large channel indication
The IC-M34 has an easy to see LCD (32 × 16 mm; 11⁄4 × 5⁄8 in) with large 2-digit channel number indication. The volume and SQL levels are shown in the display. LCD and key backlighting is standard for night
time operation.
Easy to use, easy to hold
9 large buttons on the front panel provide simple straight forward operation. It weighs only 305g, and the IC-M34’s easy-to-hold rounded body fits comfortably in your hand.
Quick channel selection with favorite channel function
The favorite channel function offers quick channel access to tagged channels by pushing the “FAV” button, while ignoring untagged channels.
Li-Ion battery and charger standard
A Lithium-Ion battery pack and battery charger are supplied as standard. The BP-252 Lithium-Ion battery pack provides 9 hours* of operating time.
* Typical operation with Tx (Hi): Rx: standby=5:5:90
Optional speaker-microphone, HM-165
A new waterproof speaker-microphone, HM-165, is optional. It uses a waterproof, screw-type connector to the IC-M34 and still allows the IC-M34 to float when connected.
Other features
- Powerful 5W output power
- Dual/Tri-watch functions
- 4-step battery life indicator
- Weather channel with weather alert
- 2-step power saver
- Auto scan function
- Instant access to Ch 16 or Ch 9
- Optional battery case for using with alkaline cells
Specifications
| General | |
|---|---|
| Frequency Range Tx Rx |
156.025–157.425 MHz 156.050–163.275 MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 7.2V DC) Tx (at 5W output) Rx (at AF max.) |
1.5A 200mA |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω (SMA) |
| Dimensions (W×H×D) (Projections not included) |
62 × 141.5 × 43 mm; 2 7⁄16 × 5 9⁄16 (H) × 1 11⁄16 in |
| Weight (approx.) | 305g; 10.8oz (With BP-252, FA-SC58V and MB-109) |
| Transmitter | |
|---|---|
| Output power (Hi/Mid/Low) | 5W (High),1W (Low)2W (High, with alkaline cells) |
| Max. frequency deviation | ± 5 kHz |
| Frequency error | ±10ppm |
| Audio harmonic distortion | Less than 10% (at 60% mod.) |
| Spurious emissions | –68dBc |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40dB |
| Receiver | |
|---|---|
| Receive system | Double-conversionsuperheterodyne |
| Sensitivity (at 12dB SINAD) | 0.25µV typical |
| Squelch sensitivity | 0.35µV typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation Rejection | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power | 0.35W typical (at 10% distortion with an 8Ω load) |
Measurement made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.
Supplied Accessories
- Li-Ion battery pack, BP-252
- Battery charger, BC-173
- AC adapter, BC-174A/E*
- Belt clip, MB-109
- Antenna, FA-SC58V
- Hand strap
