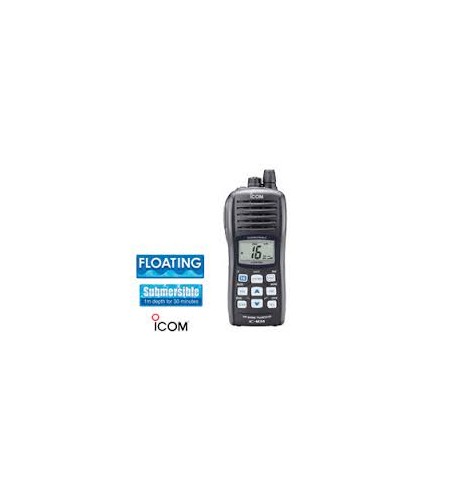

HT Icom IC-M36 VHF Marine Transceiver
Gambar Produk
HT Icom IC-M36 VHF Marine Transceiver
Update Terakhir
17-03-2017
Dilihat Sebanyak
34 kali
Lokasi
Harga
Kontak Kami
Bagikan
+ Penawaran
Perhatian!
Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.
Spesifikasi HT Icom IC-M36 VHF Marine Transceiver
HT Icom IC-M36 VHF / Handy Talky Icom IC-M36
Features : HT Icom IC-M36 VHF Marine Transceiver
- Waterproof construction equivalent to IPX7 (1m depth for 30 minutes)
- Dual/Tri-watch functions
- 4-step battery life indicator
- Weather channel with weather alert
- Auto scan function
- Instant access to Ch 16 or Ch 9
Specifications
| General | |
|---|---|
| Frequency Range Tx Rx |
156.025–157.425 MHz 156.050–163.275 MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 7.4V DC) Tx (at 6W output) Rx (at AF max.) Internal speaker External speaker Power save |
1.5A typical300mA typ. 200mA typ. 10mA typ. |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω (STUD) |
| Dimensions (W×H×D) (Projections not included) |
62 × 139.5 × 43 mm; 2 7⁄16 × 5 1⁄2 (H) × 1 11⁄16 in |
| Weight (approx.) | 295g; 10.4oz (With BP-252, FA-SC58V and MB-109) |
| Transmitter | |
|---|---|
| Output power (Hi/Low) | 6W (High),1W (Low)2W (High, with alkaline cells), 1W low |
| Max. frequency deviation | ± 5 kHz |
| Frequency error | ±10ppm |
| Audio harmonic distortion | Less than 10% (at 60% dev.) |
| Spurious emissions | –68dBc |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40dB |
| Receiver | |
|---|---|
| Sensitivity (at 12dB SINAD) | 0.25µV typical |
| Squelch sensitivity | 0.35µV typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation Rejection | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power (at 10% distortion) Internal speaker External speaker |
700mW typ. (16Ω load) 350mW typ. (8Ω load) |
