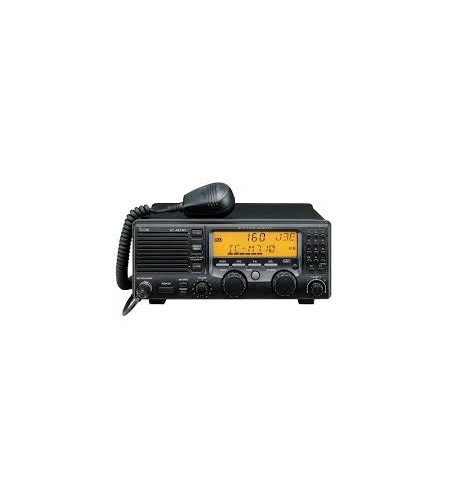

Radio ICOM M-710 SSB Marine
Perhatian!
Spesifikasi Radio ICOM M-710 SSB Marine
Features Radio SSB Marine ICOM M-710
1136 channels
160 programmable, 242 ITU SSB duplex, 72 ITU SSB simplex and 662 ITU FSK duplex channels are available.
Rugged construction
The highest quality components are used throughout. Constructed in a die-cast aluminum chassis with surface mount components, the IC-M710 is designed for long hours of operation in the harsh marine environment.
Alphanumeric readout
The large, easy-to-read display shoes status at a glance. Seven characters can be programmed into each memory channel to conveniently display station names, ship names, etc.
150 W of output
A full 150 W (PEP) of output power is available for reliable long distance communication. A large cooling fan, in combination with the aluminum chassis, allows continuous transmission at full output power—even during demanding RTTY (radio teletype) and NBDP (narrow band direct printing) operation.
Automatic tuning function
An automatic tuning function is available when using the IC-M710 in combination with the optional AT-140 for quick and easy antenna tuning. Tuning is fully automatic. When you push the PTT on a new frequency, the antenna tuner quickly tunes the antenna automatically.
Easy to use
Two large memory and frequency dials allow quick and easy operation.
And more…
- Covers all allowed bands between 1.6 and 27.5 MHz
- General coverage receiver
- Modes: SSB, RTTY, CW and AM
- 2182 kHz alarm built-in (optional for General versions)
- RF gain control
- Audio activated squelch
- Terminals for frequency/mode control via NMEA interfacing
- Direct keypad channel selection entry
- Large, front-mounted speaker
- Direct keypad channel selection entry
- Weather fax ready
- Backlight control
- CW full break-in and semi break-in
Specifications
| General | |
|---|---|
| Frequency coverage Recieve Transmit* |
0.500 – 29.999 MHz 1.6 – 27.5 MHz * Restrictions may apply depending on version |
| Mode (varies with country) | J3E (USB), H3E, R3E, J2B (AFSK), F1B (FSK) R3E, A1A (CW) available modes may differ depending on version |
| Number of channels | 1136 (max.) (160 programmable; 242 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex) |
| Antenna impedance | 50Ω (nominal) |
| Usable temperature range | -30°C to +60°C; -22°F to +140°F |
| Frequency stability | ±10 Hz (-30°C to +60°C: ±20 Hz above 15 MHz for General and Marine versions) |
| Power supply requirement | 13.6 V DC ±15% (negative and floating grounds are available depending on version) |
| Max. current drain
(at 13.6 V DC) |
Transmit at max power 30 AReceive at max. AF output 2.5 A (negative ground type)
Receive at max. AF output 3.0 A (floating ground type) |
| Dimensions (proj. not incl.) | 291.4 × 116.4 × 315 mm1115⁄32× 419⁄32× 1213⁄32 in |
| Weight | 7.9 kg (17 lb 7 oz; negative ground type) 8.1 kg (17 lb 14 oz; floating ground type) |
| Transmitter | |
|---|---|
| Output power U.S.A. versionEurope version |
150, 60, 20 W PEP (selectable) (60, 20 W only for 25 MHz band) 150, 60 W PEP (selectable) (60 W only for 25 MHz band) |
| Spurious emissions | -60 dB (Europe version) -65 dB (USA version) |
| Carrier suppression | 40 dB |
| Unwanted sideband supression | 55 dB |
| Microphone impedance | 600Ω |
| Receiver | |
|---|---|
| Sensitivity
J3E, R3E, J2B, F1B, A1A (for 12 dB SINAD) H3E (for 10 dB S/N)
|
0.5 μV (1.8–29.9999 MHz)
1 μV (1.6–1.7999 MHz) 6.3 μV (0.5–1.5999 MHz) 3.2 μV (1.8–29.9999 MHz) 6.3 μV (1.6–1.7999 MHz) 32 μV (0.5–1.5999 MHz) |
| Spurious rejection ratio | 70 dB (1.6–29.9999 MHz) |
| Audio output power | 4.5 W at 10% distortion with a 4 Ω load |
| Audio output impedance | 4 to 8 Ω |
| Clarity variable range | ±150 Hz |
