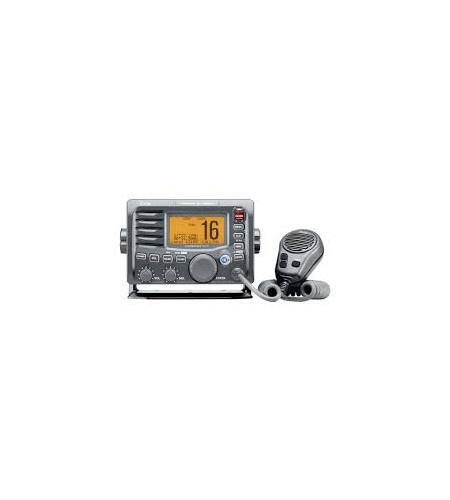

Spesifikasi Radio Icom IC-M504A VHF Marine Transceiver
Read the Practial Sailor Review of the M504A here!
Click the image to view the PDF review.
*Compatible with the New MA500TR – Class B AIS Transponder
Learn more about the MA500TR here.
Compliant to new FCC Class D DSC Regulations
- Escalating DSC Alarm
- An on/off switch for the radio to automatically switch to channel 16 when a DSC call is made
- 2 receivers, one for the radio and one to monitor channel 70 for DSC full time
Learn how to register your DSC radio
IPX8 Submersible PLUS (1.5m depth for 30 minutes)
The IC-M504A withstands submersion in up to 1.5m depth of water for 30 minutes. It is equivalent to the IPX8 standard. All products are rigorously checked to pass the quality test at the factory.
Large LCD with dot-matrix characters
The IC-M504A has a 168-character, full-dot matrix display that allows you to easily view a variety of information, such as GPS data, DSC emergency data, etc. The large buttons and knobs provide user-friendly operation.
ITU Class D DSC
The IC-M504A has built-in Class D DSC, which enables you to constantly monitor channel 70. This functionality provides users at sea with the peace of mind that they can call for help by pressing the “Distress” button if the need arises.
Position Request and Position Report
Over and above the DSC, your own and other ships’ position data can be exchanged with the position request or position report functions. The received position information can be transferred to external navigation equipment*. In addition, the polling (request/ reply) function checks whether a specific ship is within the communications range.
* External GPS receiver and navigation equipments which accept NMEA 0183 format are required.
Superior receiver performance
The IC-M504A has excellent receive specifications of 80dB (typical) for intermodulation rejection, adjacent channel selectivity, and 0.22µV (typical) high sensitivity. The IC-M504A’s superior receiver provides excellent resistance to intermodulation and allows you to catch a weak signal between strong stations.
Excellent audio output power
The extra large speaker is mounted into a well spaced housing, producing greater sound than the specified 4.5W output power. You can get clear and loud reception without requiring repetition of the message, even over the engine or other background noise.
25W hailer/RX speaker and auto foghorn
When connected to a hailer horn or external speaker on the deck or tower, you can make an announcement on-board from the microphone. The RX speaker function, “receiver-repeater”, allows you to monitor the received audio. Four foghorn patterns are also available for the automatic foghorn.
Rear panel microphone version*

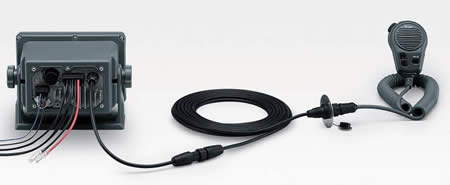

With this version, the microphone connector is drawn from the rear panel and a 6.1m (20ft) microphone extension cable is supplied to allow you clean and neat panel installation.
* Ask your dealer for details
Other features
- Dual/tri-watch function for monitoring Ch.16 and/or call channel
- Instant access to Ch. 16 and call channel
- 7 levels adjustable backlit display and keypad
- Convenient “TAG” scanning function with simple add/delete
- Optional Voice Scrambler, UT-112 for private communication
- Weather channels with weather alert function
- Black or gray color versions
Specifications
| General | |
|---|---|
| Frequency range Tx Rx |
156.025 – 157.425 MHz 156.050 – 163.275 MHz |
| Type of emission | 16K0G3E, 16K0G2B |
| Usable channels | USA, INT, CAN, WX channels |
| Power supply requirement | 13.8V DC ±15% |
| Current drain (at 13.8V DC) Transmit Receive |
5.5A (25W output) 1.5A (Max. AF) |
| Operating temperature range | –20°C to +60°C;–4°F to +140°F |
| Antenna impedance | 50Ω (SO-239) |
| Dimensions (W×H×D) (projections not included) |
165 × 110 × 123.2 mm 61⁄2×411⁄32×427⁄32 in. |
| Weight (approx.) | 1.45kg; 3.20 lb |
| NMEA formats Input Output |
RMC, GGA, GNS, GLL DSC, DSE |
| Transmitter | |
|---|---|
| Output power | 25W or 1W (at 13.8V DC) |
| Modulation system | Variable reactance |
| Max. freq. deviation | ± 5.0 kHz |
| Frequency error | ± 10.0ppm |
| Spurious emissions | Less than -70dBc (at 25W) |
| Residual modulation | More than 40dB |
| Adjacent channel power | More than 70dB |
| Receiver | |
|---|---|
| Intermediate freq. 1st2nd |
21.7 MHz 31.05 MHz (Ch 70) 450 kHz |
| Sensitivity | 0.22µV typical (at 12db SINAD) |
| Squelch sensitivity | 0.32µV typical (threshold) |
| Adjacent Ch. selectivity | 80dB typical (DSC 75dB) |
| Spurious response | 80dB typical (DSC 75dB) |
| Intermodulation rejection | 80dB typical (DSC 75dB) |
| Hum and noise ratio | More than 40dB |
| Audio output power | 4.5W typ. at 10% distortion with a 4Ω load |
