Portable Digital Radio Hytera PD-788G
Perhatian!
Spesifikasi Portable Digital Radio Hytera PD-788G
Portable Digital Radio Hytera PD-788G
Radio Dua Arah Portable Digital Serbaguna PD788/788G
Layar Berwarna Dengan Ukuran Diperbesar
Layar berwarna dengan ukuran besar memungkinkan visibilitas yang baik, bahkan dalam kondisi cahaya yang sangat terang. Tujuh tombol yang dapat diprogram juga dapat memperlancar komunikasi Anda dalam berbagai kondisi.
Kualitas Andal
PD788/788G sangat mematuhi standart 810 C/D/E/F/G dan IP67 , memastikan performa menakjubkan, bahkan di lingkungan yang sulit.
Layanan Serbaguna
Selain layanan komunikasi biasa ,PD788/788G menyediakan berbagai layanan data yang kaya dan fungsi dapat dipilih seperti Pesan teks, Pindai , Darurat , Operator Tidak Aktif ( opsional ), Pendaftaran Otomatis Getaran , Transmisi Data Berkecepatan Tinggi , Pekerja Mandiri.
Privasi Suara dan Data
PD788/788G mendukung pengacakan analog, dan enkripsi digital menggunakan metode Enkripsi AES ( Advanced Encryption Standard atau Standart Enkripsi Canggih)dan ARCFOUR ( ARC4 ) untuk suara dan data.
Description :

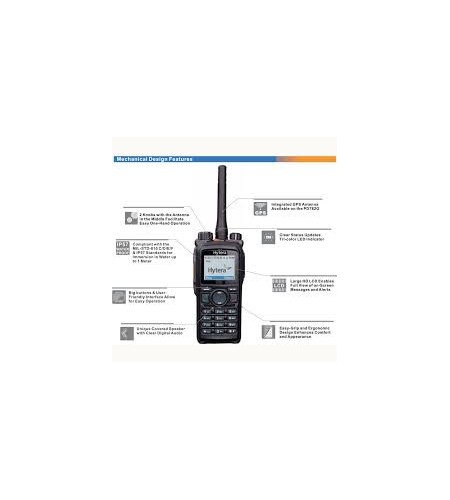

Ergonomic Design
The large-size color display allows good visibility even under extremely strong light.
The globally patented industrial design and antenna design ensure convenient operation and remarkable GPS performance.
Reliable Quality
PD788/788G is strictly compliant with MIL-STD-810 C/D/E/F/G and IP67 standards, ensuring outstanding performance even in harsh environments.
Superior Voice
With the combined application of narrowband codec and digital error-correction technologies, PD788/788G is capable of ensuring you superior voice in noisy environments or at the edge of the coverage area. In addition, the adoption of the AGC technology also optimizes your voice. With a built-in 1W speaker, PD788/788G ensures clear and crisp voice communication.
Durable Battery
Compared with an analog radio, PD788/788G can obtain an extra 40% operation time.
Higher Spectrum Efficiency, Higher Channel Capacity
Benefiting from the TDMA technology, PD788/788G allows twice the channels based on the same spectrum resource. This is a big help to relieve the stress of increasing shortage in spectrum resource.
Dual-slot Pseudo Trunk
With this feature, the free slot can be allocated to a member that needs to communicate, effectively enhancing frequency efficiency and allowing you to communicate timely under emergency situations.
Secure Communication
Besides the intrinsic encryption of the digital technology, PD788/788G provides enhanced encryption capability (such as 256-bit encryption algorithm) and the Scrambler feature (selectable).
Versatile Services
In addition to conventional communication services, PD788/788G features rich data services and selectable functions such as Text Message, Scan, Emergency, Man Down (optional), vibration Auto Registration, High-speed Data Transmission* and Lone Worker.
Further Development Port
The reserved side port in PD788/788G allows users or any third party partner to further develop other helpful applications to extend the radio functionalities!
Option Board Interface
PD788/788G supports option board interfaces to radio, allowing third party partner to develop various applications to interconnect with radios to control the radio to expand its functionalities! Among the supported features are voice recording, encryption♦ etc. Please refer to the API Partner Programmed for more information!
Features :
Dual Modes (Analog+Digital)
PD788/788G can operate in either analog or digital mode. It is compatible with the prevalent analog system, ensuring a smooth analog-to-digital transition.
Versatile Voice Calls
Intelligent signaling of PD788/788G supports various voice call types, including Private Call, Group Call , All Call and Emergency Call.
GPS
PD788G supports viewing of GPS positioning information and sending of GPS text message.
Data Services
PD788/788G supports data capabilities of sending Private, Group text message. It also supports Third Party to control the radio via Third party API (GPS, Radio Registration Services, Radio and Call Control, Telemetry♦ , Data Transfer♦ ), via Telemetry control to radio.
Various Analog Signaling Types
PD788/788G supports various analog signaling types (HDC1200, DTMF♦, 2-Tone and 5-Tone), various squelch control types (CTCSS/CDCSS), thus providing higher function expansion capacity to the analog world.
Supplementary Services
PD788/788G supports supplementary services of Radio Check, Remote Monitor, Call Alert, Radio Enable and Radio Disable.
Multiple Languages
PD788/788G supports 13 languages, including English, Simplified Chinese, Traditional Chinese, German, Spanish, French, Italian, Polish, Russian, Turkish, Greece, Portuguese and Korean, allowing users to select it per their needs.
One Touch
PD788/788G supports One Touch features that comprise of Text Message, Voice Calls and Supplementary Services.
Scan
PD788/788G supports scanning of pure Analog voice and signaling, pure Digital voice and data, and also mix mode scan that comprise of Analog and Digital activities.
Roaming
PD788/788G supports automatic roaming of all sites in a IP Multi-Site Connect systems.
Privacy of Voice and Data
PD788/788G supports Analog scrambling, and digital encryption using Advanced Encryption Standard (AES) and ARCFOUR (ARC4) encryption methodology to both voice and data.
Analog/Digital Telephone Interconnect (via DTMF signaling)
PD788/788G supports simplex voice communications between radio and telephone users. It allows a radio user to make a telephone call; or a telephone user to make either a Group or Private call to radio users. This feature utilizes the Commercial Off The Shelf (COTS) Analog Phone Patch boxes and a Plain Old Telephone Service (POTS) line to connect the radio users to the Corporate Office Phone System (PBX) or Public Switched Telephone Network (PSTN).
Software Upgradable
With this capability, you can enjoy firmware upgrade without purchasing a new piece of radio hardware!
Specification :
General
|
||
Frequences
|
UHF1: 400-470MHz
UHF2: 450-520MHz
UHF3: 350-400MHz
VHF: 136-174MHz
|
|
Channel Capacity
|
1024
|
|
Zone Capacity
|
64 (each with a maximum of 16 channels) |
|
Channel Spacing
|
12.5KHz/20KHz/25KHz
|
|
Operating Voltage
|
7.4V (rated)
|
|
Battery
|
2000mAh (Li-Ion)
|
|
Battery Life
(5-5-90 Duty Cycle, High TX Power)
High-capacity 2000mAh Li-Ion Battery
|
Analog:
UHF1: 13.5h 12h (G)
UHF2: 12.5h 11h (G)
UHF3: 12.5h 11h (G)
VHF: 11h 10h (G)
Digital:
UHF1: 15.5h 14h (G)
UHF2: 14.5h 12.5h (G)
UHF3: 14.5h 12.5h (G)
VHF: 13.5h 12h (G)
|
|
Frequency Stability
|
±0.5ppm
|
|
Antenna Impedance
|
50Ω
|
|
Dimensions (H×W×D)
(with standard battery, without antenna)
|
125 X 55 X 37mm
|
|
Weight (with antenna & standard battery)
|
355g)
|
|
LCD Display
|
160×128 pixels, 65535 colors
1.8 inch, 4 rows
|
|
Transmitter
|
||
RF Power Output
|
UHF1/UHF2/UHF3 High Power: 4W
UHF1/UHF2/UHF3 Low Power :1W
VHF High Power: 5W
VHF Low Power: 1W
|
|
FM Modulation
|
11KΦF3E @ 12.5KHz
14KΦF3E @ 20KHz
16KΦF3E @ 25KHz
|
|
4FSK Digital Modulation
|
12.5KHz Data Only: 7K60FXD
12.5KHz Data & Voice: 7K60FXW
|
|
Conducted/Radiated Emission
|
-36dBm<1GHz
-30dBm>1GHz
|
|
Modulation Limiting
|
±2.5KHz @ 12.5KHz
±4.0KHz @ 20KHz
±5.0KHz @ 25KHz
|
|
FM Hum & Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
Adjacent Channel Power
|
60dB @ 12.5KHz
70dB @ 20/25KHz
|
|
Audio Response
|
+1 ~ -3dB
|
|
Audio Distortion
|
≤3%
|
|
Digital Vocoder Type
|
AMBE++ or SELP
|
|
Digital Protocol
|
ETSI-TS102 361-1, -2,-3
|
|
Receiver
|
||
Sensitivity
|
Analog
|
0.3μV (12dB SINAD)
0.22μV (Typical) (12dB SINAD)
0.4μV (20dB SINAD)
|
Digital
|
0.3μV /BER5%
|
|
Selectivity
TIA-603
ETSI
|
60dB @ 12.5KHz/70dB @ 20&25KHz
60dB @ 12.5KHz/70dB @ 20&25KHz
|
|
Intermodulation
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
65dB @ 12.5/20/25KHz
|
|
Spurious Response Rejection
TIA-603
ETSI
|
70dB @ 12.5/20/25KHz
70dB @ 12.5/20/25KHz
|
|
Blocking
TIA-603
ETSI
|
80dB
84dB
|
|
Hum and Noise
|
40dB @ 12.5KHz
43dB @ 20KHz
45dB @ 25KHz
|
|
Rated Audio Power Output
|
0.5W
|
|
Rated Audio Distortion
|
≤3%
|
|
Audio Response
|
+1 ~ -3dB
|
|
Conducted Spurious Emission
|
< -57dBm
|
|
Environmental Specifications
|
||
Operating Temperature
|
-30℃ ~ +60℃
|
|
Storage Temperature
|
-40℃ ~ +85℃
|
|
ESD
|
IEC 61000-4-2(level 4)
±8kV (contact)
±15kV (air)
|
|
American Military Standard
|
MIL-STD-810 C/D/E/F/G
|
|
Dust & Water Intrusion
|
IP67 Standard
|
|
Humidity
|
Per MIL-STD-810 C/D/E/F Standard
|
|
Shock & Vibration
|
Per MIL-STD-810 C/D/E/F Standard
|
|
GPS (for PD78XG only)
|
||
Accuracy specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal -130dBm signal strength)
|
||
TTFF (Time To First Fix) Cold Start
|
<1 minute
|
|
TTFF (Time To First Fix) Hot Start
|
<10 seconds
|
|
Horizontal Accuracy
|
<10 meters
|
