HT Icom IC M24 VHF Marine Transceiver
Perhatian!
Spesifikasi HT Icom IC M24 VHF Marine Transceiver

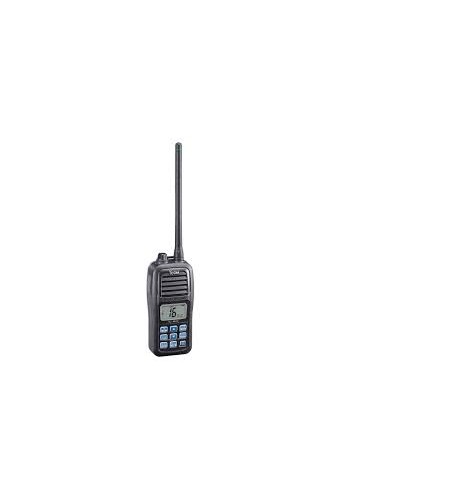

HT Icom IC M24 VHF Marine Transceiver
Features HT Icom IC M24 :
Icom pioneered the floating VHF marine radio and others followed. Setting a new trend yet again, The IC-M24 has a flashing light feature that activates when the radio hits water, even if the power is off! If you drop this floating radio overboard, it’s easier to find than ever, day or night.
Float ‘n flash*
With its innovate flashing red LED light, an overboard IC-M24 is easy to find, day or night. The light flashes even if the radio is turned off.
* US patent pending.
AquaQuake draining function
The vibrating “buzz” sound clears water away from the speaker grill.
Smallest and lightest in the world
As a 5W VHF marine transceiver, the IC-M24 has the smallest and lightest body in the world.*
* As of December, 2010, researched by Icom.
Energy-saving 3.7V circuitry
The IC-M24 is powered by the 3.7V Lithium-Ion battery pack, BP-266, to reduce the volume and weight of the radio. A newly developed PA circuit produces 5W (approx.) RF output and powerful 600mW (typ.) audio even at this low voltage, while saving battery consumption for 10 hours of operating time. *
Typical operation with Tx (Hi): Rx: standby=5:5:90.
Easy to see large LCD
The large, easy to see LCD (32 × 16 mm) offers a clear 2-digit channel number indication.
Built-in regular charger circuitry
Recharge the IC-M24 by plugging the wall charger directly in to the radio. By eliminating exposed metal charging points, the IC-M24 is even more protected from water damage.
Volume loud and mute functions
The volume loud/mute functions temporarily change the volume to the maximum/minimum level with two touches of a button. Depending on the background noise level, you can easily change the volume level to capture the received message.
Other features
- Submersible construction equivalent to IPX7 (1m depth for 30 minutes)
- Dual/Tri-watch functions
- 4-step battery life indicator
- Weather channel with weather alert (USA version)
- One-touch access to Ch. 16
- Auto scan function
- Tag scan and Favorite channel functions
Specifications
| General | |
|---|---|
| Frequency Range Tx Rx |
156.025–157.425 MHz 156.050–163.275 MHz |
| Usable channels | INT, USA, CAN, WX channels |
| Type of emission | 16K0G3E (FM) |
| Current drain (at 3.7V DC) Tx (High) Rx (at AF max.) Power save |
2.3A 350mA typ. 8mA typ. |
| Operating temperature range | -20°C to +60°C; -4°F to +140°F |
| Antenna Impedance | 50Ω (Stud) |
| Dimensions (W×H×D) (Projections not included) |
58.5 × 128.5 × 34.5 mm; 2.3 × 5.06 × 1.36 in |
| Weight (approx.) | 260g; 9.2 oz (With BP-266, FA-SC58V, MB-124) |
| Transmitter | |
|---|---|
| Output power (Hi/Mid/Low) | 5W (High),1W (Low) |
| Max. frequency deviation | ± 5 kHz |
| Frequency stability | ±10ppm |
| Spurious emissions | –68dBc typ. |
| Adjacent channel power | 70dB |
| Audio harmonic distortion | 10% (at 60% dev.) |
| Residual modulation | 40dB |
| Receiver | |
|---|---|
| Sensitivity (at 12dB SINAD) | 0.25µV typical |
| Squelch sensitivity | 0.35µV typ. (at threshold) |
| Adjacent Channel Selectivity | 70dB typical |
| Spurious response | 70dB typical |
| Intermodulation Rejection | 70dB typical |
| Hum and noise ratio | 40dB typical |
| Audio output power (at 10% distortion, 8 Ω) |
600mW typ. |
