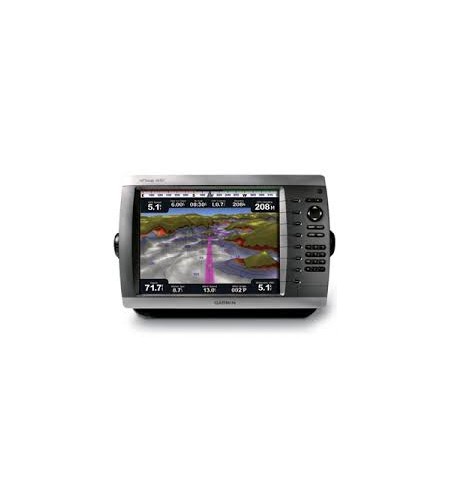

Garmin GPSMap 4012
The power of networking meets the brilliance of great design in this large-screen chartplotter, which serves as your all-in-one “nerve centre” for the Garmin Marine Network. The GPSMAP 4012 has crisp, video-quality resolution on a large 12″ (30.7 cm) XGA display as well as a worldwide, satellite-enhanced basemap. By connecting to the Garmin Marine Network, you can add sonar and radar. For even more enhanced features, you can add the optional BlueChart® g2 Vision® card (sold separately).
View High-res Video and Graphics
The 4012 features a worldwide basemap with high-quality satellite images in place of more traditional maps. And for more detail, you can add maps easily with the SD™ card slot without having to connect to a computer. The 4012’s high-speed processor draws maps quickly, and its simple intuitive interface makes navigating easy. To keep tabs on your engine room or other area of your boat, you also can connect a live video feed with the 4012’s video input and output options.
Add Extras with BlueChart g2 Vision
With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.
- MarinerEye view and FishEye view provide you a 3-D perspective of map information, both above and below the waterline.
- High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
- Auto Guidance technology searches through all relevant charts to create a route you actually can follow — one that avoids obstacles, shallow water, buoys and other obstructions.
Connect to the Garmin Marine Network
The 4012 connects easily to the high-speed Garmin Marine Network, so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the 4012 and other chartplotters on your boat. You also can add high-powered radar and sonar to your system.
Spesifikasi – Garmin GPSMap 4012
Physical & Performance: |
|
| Unit dimensions, WxHxD: | 14.8″ x 9.5″ x 4.6″ (37.6 x 24.1 x 11.7 cm) |
| Display size, WxH: | 9.7″ x 7.3″, 12.1″ diagonal (24.6 x 18.4 cm, 30.7 cm diagonal) |
| Display resolution, WxH: | 1024 x 768 pixels |
| Display type: | XGA display |
| Weight: | 10.0 lb (4.5 kg) |
| Battery: | none |
| Battery life: | none |
| Waterproof: | yes (IPX7) |
| High-sensitivity receiver: | yes |
| Antenna: | external |
| NMEA input/output: | NMEA 0183, NMEA 2000 |
Maps & Memory: |
|
| Basemap: | yes |
| Preloaded maps: | no |
| Ability to add maps: | yes |
| Built-in memory: | none (cannot load maps to internal memory) |
| Accepts data cards: | SD™ card slot (BlueChart g2 Vision cards sold separately) |
| Waypoints/favorites/locations: | 1,500 |
| Routes: | 20 |
| Track log: | 10,000 points; 20 saved tracks |
Features & Benefits: |
|
| Garmin radar compatible: | yes |
| Garmin sonar compatible: | yes |
| Garmin Marine Network™ compatible: | yes |
| Supports AIS (tracks target ships’ position): | yes |
| Supports DSC (displays position data from DSC capable VHF radio): | yes |
| Audible alarms: | yes |
| Tide tables: | yes |
| Hunt/fish calendar: | no |
| Sun and moon information: | yes |
| 3-D map view: | yes (with optional BlueChart g2 Vision card) |
| Auto Guidance: | yes (with optional BlueChart g2 Vision card) |
| XM WX Weather & Radio for U.S. & Canada compatible: | yes |
| Automatic routing (turn by turn routing on roads): | no |
| Voice prompts (e.g. “Turn right in 500 ft.”): | no |
| Speaks street names (e.g. “Turn right ON ELM STREET in 500 ft.”): | no |
| Headphone jack/audio line-out: | no |
| Audio/video input/output: | yes |
| Portable: | no |
| Automotive/motorcycle-friendly: | no |
What’s in the Box:
- GPSMAP 4012
- Flush mount
- Bail mount
- GPS 17x NMEA 2000®
- Power cable
- NMEA 0183 cable
- Video cable assembly
- Marine grommet kit
- Protective front cover
- Owner’s manual
- Installation instructions
