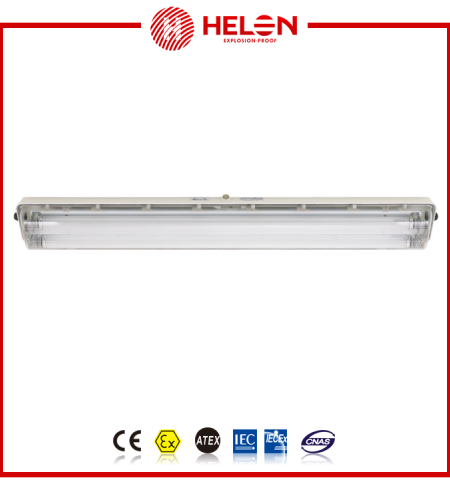

Explosion-proof Light Fittings for Fluorescent Lamp BYS51

Update Terakhir
02-04-2017
Minimum Pembelian
1 1
Dilihat Sebanyak
802 kali
Lokasi
Banten - Tangerang - Karawaci
Harga
Kontak Kami
Bagikan
+ Penawaran

Perhatian!

Perusahaan ini terdaftar sebagai Free Member. Hindari melakukan pembayaran sebelum bertemu penjual atau melihat barang secara langsung. COD (Cash On Delivery) atau bertemu langsung dengan penjual merupakan metode transaksi lebih aman.

Spesifikasi Explosion-proof Light Fittings for Fluorescent Lamp BYS51

Zone 1 and Zone 2
Zone 21 and Zone 22
Meet the necessities in the following industries, such as petroleum, chemical, electricity, medicine, textile, wine-making, aerospace, military, fire-fighting, etc.

Features and benefits

◆ Explosion protection to
-CENELEC
-IEC
◆ Two enclosure types: 18W, 36W.
◆ Enclosure in glass fibre reinforced polyester, diffuser in
polycarbonate, corrosion-proof
◆ Ex e enclosure with explosion-proof components inside
◆ Safety interlock between enclosure and diffuser switches
off on opening
◆ Electronic ballast, power factor≥0.95
◆ Emergency unit with protections against over charge and
over discharge.
◆ End of lamp life (EOL) rectification effect protection.


Outline and installation dimensions




Technical data


   Explosion protection
      Gas explosion protection                II2 G Ex de IIC T4 Gb
      Dust explosion protection                II2 D Extb ⅢC T80℃ Db  IP66
    Conformity to standards        EN 60079-0: 2012,EN 60079-1: 2007,EN 60079-7: 2007,EN 60079-31: 2009,
         IEC 60079-0: 2011, IEC 60079-1: 2007, IEC 60079-7: 2006,IEC 60079-31: 2008
   Material
      Enclosure        GRP, stands 7J impact, corrosion-proof
      Diffuser        Polycarbonate, 90% light transmission, stands 7J impact
      Ballast        Explosion-proof electronic ballast, power factor ≥0.95, with protection against short
         circuit, overload, lamp aging,lamp damage and dissymmetry power of lamp tube.
    *Emergency unit        Special emergency controller and NI-MH battery pile, with protection against over
         charge and over discharge
      Emergency controller        Explosion-proof emergency controller.
      Exposed fastener        Stainless steel
   Lamp
      Lamp brand        PHILIPS T8 (supplied with the light fittings)
      Lamp power(W)        36W×2         18W×2
         36W×1         18W× 1
      *Emergency power(W)        36W×1         18W×1
      *Emergency start time        0.3s
      *Charge time        24h
      *Emergency lighting time        120min (180min is optional)
   Rated voltage          96-254VAC 50/60Hz
   Protection class          Ⅱ (Protection against electric shock)
   Degree of protection          IP66
   Ambient temperature          -25℃〜+55℃
   Terminal          3×1.5~4mm2 (L+N+PE)
   Cable entries          4×φ26: 2× M25×1.5 cable gland  2 x M25×1.5 plug.
   Available cable outer diameter          φ10~φ14 (mm)
*:Parameter with emergency.

Outline and installation dimensions


                    Size(mm) Type A B C D
BYS51-18×(1~2)(J) 642 798 120 208
BYS51-36×(1~2)(J) 800 1380 120 208
Serialnumber Name  Remark
1     Mounting rack
2 Explosion-proof light fittingsfor fluorescent lamp
3     Hook     User-supplied
4     Chain
5     Hook     User-supplied
6     Eye bolt
7     Fixed plate
8     Bend pipe     G1
9     Cable     User-supplied
10     Fasten clamp     User-supplied
11     Pipe clamp
12     Mounting rack (30°)
13     Mounting rack (90°)
14     Mounting rack
15     Screw     M8
16     Pipe     G11/4
17     Pipe     G11/4
18     U Type pipe clamp     User-supplied
19     Explosion-proof pipe connector     G3/4
20     Explosion-proof junction box(ⅡC)     AH-C/G3/4C
